Mechanical Magnesium Sulphate Sandwich Panel

Car - doneSandwich panels with magnesium oxysulfide- is a high-performance building material with excellent comprehensive properties, which is widely used in the construction industry. Below is a professional introduction to it:

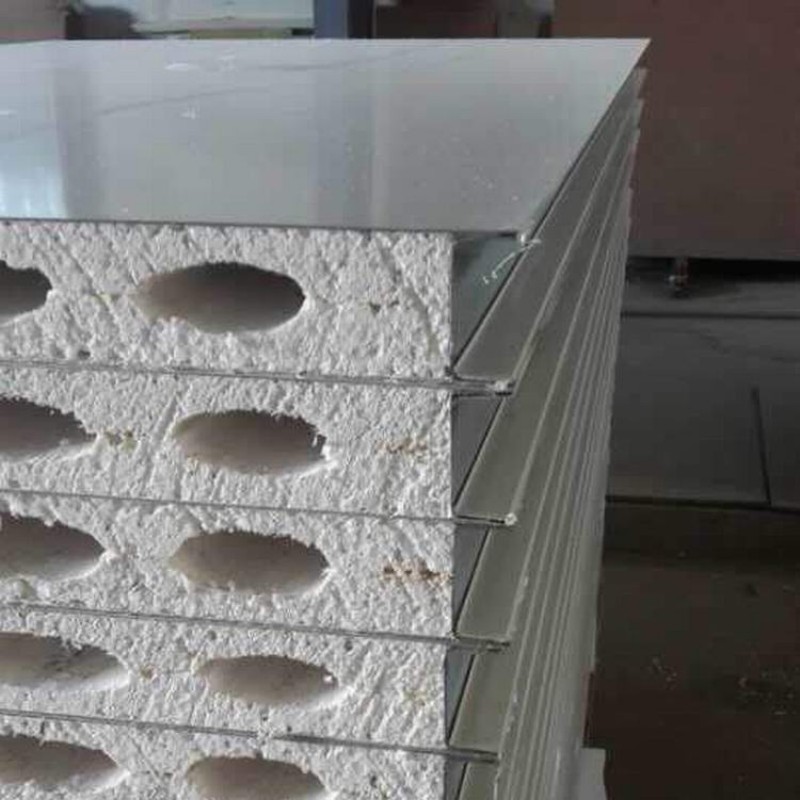

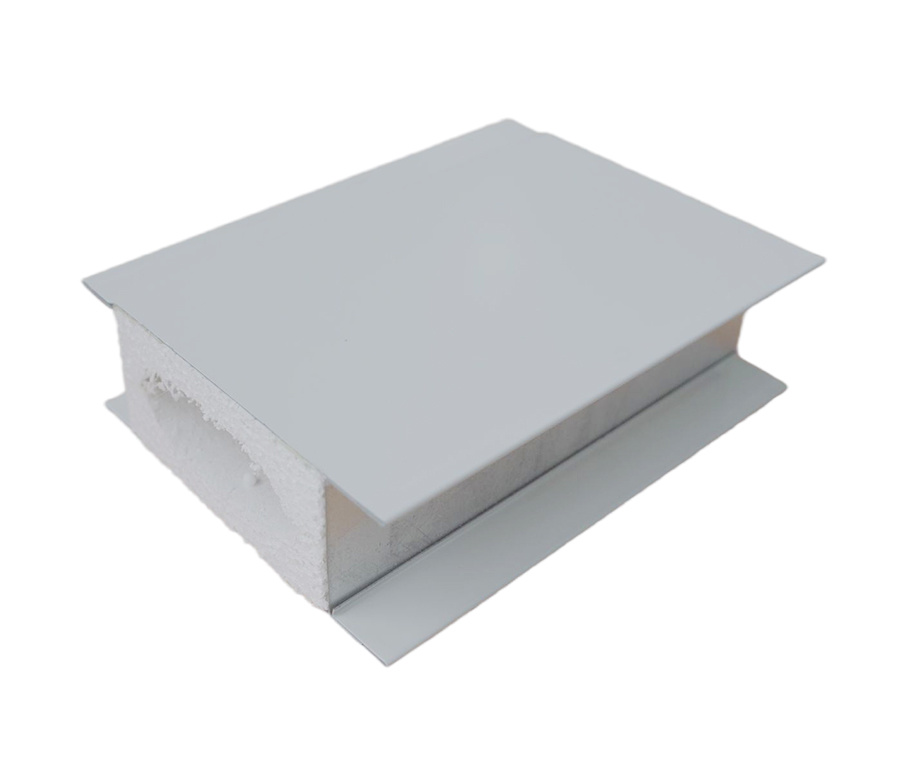

Structure and materials

• Surface layer: The surface layers of the panel are usually made of high-quality galvanized or painted steel sheets. These steel sheets are usually 0.376 - 0.5 mm thick. The color coating not only provides the panel with rich colors to meet various aesthetic requirements, but also provides good corrosion resistance, protecting the panel from environmental erosion and prolonging its service life.

• Base layer: The base layer is made ofmagnesium oxysulfideMaterial. Sulfur-oxygen-magnesium is a kind of magnesium binder with stable performance characteristics, which is composed of magnesium oxide, sulfuric acid and other substances. It has the advantages of low density, good thermal insulation, fire resistance and sound insulation.

Production process

• Preparation of material: High quality galvanized steel coils or color coated coils and sulfur-oxygen-magnesium raw materials are prepared. Themmagnesium oxysulfideRaw materials must be accurately dosed and mixed to ensure consistency of material characteristics.

• Panel assembly: By means of high-speed automatic continuous forming machine, galvanized steel sheets or color coated steel sheets andmoxysulfide agnesiaThe core material is heated and pressed together. High-strength adhesive is used to firmly bond the two layers, forming a sandwich structure.

• Finishing: Once the panel is formed, it will go through processes such as trimming, grooving and punching to ensure that its size and shape meets the design requirements. Finally, a PVC protective film can be applied to the surface to protect the panel from scratches and damage during transportation and installation.

Advantages

• Fire resistance: Magnesium oxysulfide material is non-flammable and has a fire resistance time of 1-3 hours. It can effectively prevent the spread of fire and ensure the safety of buildings and personnel in case of fire.

• Thermal insulation: With low thermal conductivity, the panel has good thermal insulation performance. It can reduce the heat transfer between the indoor and outdoor environment of the building, helping to maintain a stable indoor temperature and reduce energy consumption for heating and cooling.

• Soundproofing:Themmoxysulfide agnesiaThe core has a certain elasticity and tightness, which can effectively block sound transmission and create a quiet environment in the room.

• Waterproof and moisture resistant: The panel has a low water absorption rate, generally ≤ 0.8%. Even when in contact with watermoxysulfide agnesiaThe core will not deform unevenly or undergo chemical reactions, ensuring the panel's stability in a humid environment.

• High adhesive strength: High strength adhesive is used between the core material and the steel sheet, which makes the bonding strength between them high and effectively prevents the phenomenon of delamination.

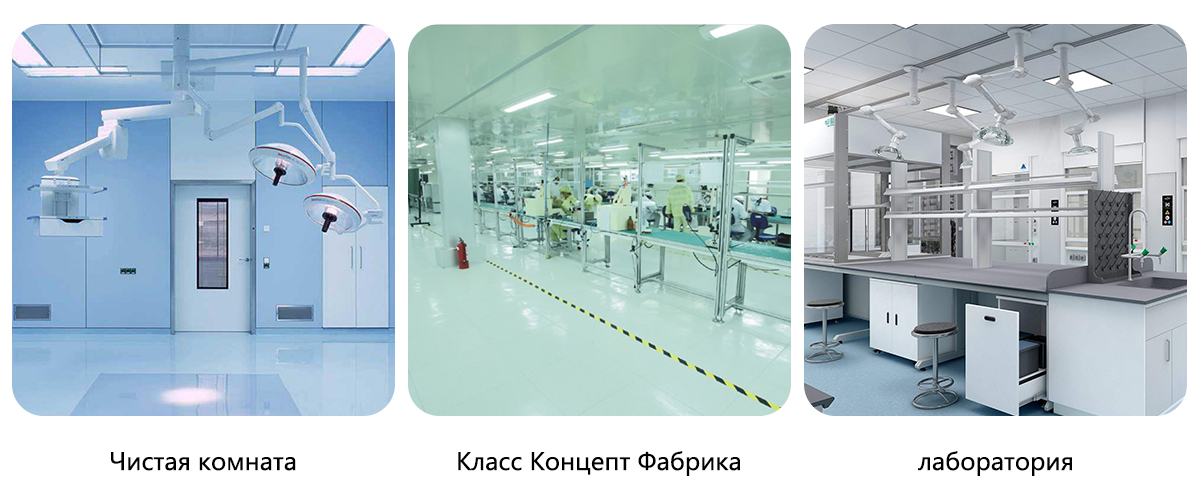

Applications

• Industrial buildings: It is widely used in the walls and roofs of factories and warehouses. Its fire resistance, thermal insulation and other properties can meet the requirements of industrial production environments, and can also improve the energy efficiency and safety of buildings.

• Commercial buildings: In shopping malls, office buildings and other commercial buildings, the panel can be used for interior and exterior decoration, as well as partitions and ceilings. Its rich colors and good performance can improve the overall quality and comfort of the building.

• Clean rooms: With its dust-proof, anti-bacterial and other characteristics, it is very suitable for clean room use in electronics, pharmaceutical, food and other industries, helping to maintain a clean and sterile environment.

• Residential buildings: It can be used in external walls and interior partitions of residential buildings, providing good thermal insulation, sound insulation and fire protection functions, as well as improving the living comfort and safety of residents.
