Mechanical Silicate Sandwich Panel
High fire resistance
The silica filler has excellent heat resistance - the panels do not burn and effectively prevent the spread of fire (up to ≥ 2 hours of fire resistance).
Light weight and high strength
Despite their lightness, the panels are highly resistant to mechanical damage and deformation.
Ecological and safe
They do not contain toxic substances, do not emit harmful gases when heated, and comply with sanitary standards.
Good heat and sound insulation
Provide a comfortable internal environment and reduce heat loss.
Ease of installation
They are produced on an automated line and are easily connected using a tongue and groove system or a lock, speeding up installation.
Hygienic surface
Smooth steel cladding is easy to clean and resistant to moisture, ideal for clean rooms.
?Brief Product Description

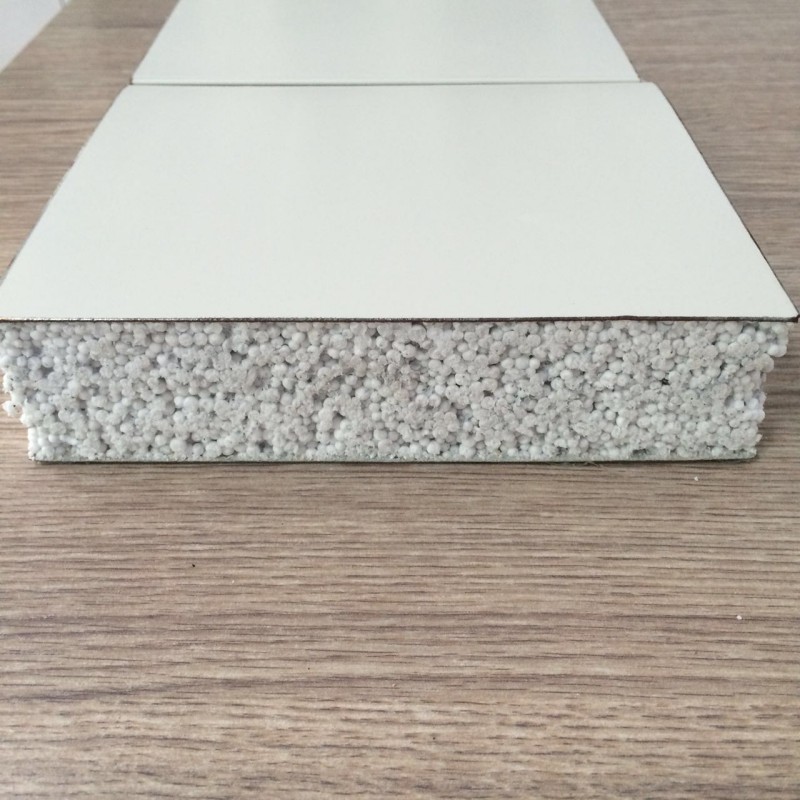

Machined sandwich panel with silica filler is a high-performance building material developed for objects with increased requirements for fire resistance, hygiene and thermal insulation. External skins are made of painted galvanized steel, the inner layer is made of fire-resistant silica filler.
?Product details
Lining:colored (powder coated) galvanized steel
Filler:foamed silica (inorganic material, non-flammable)
Mode of production:automatic line, machine assembly

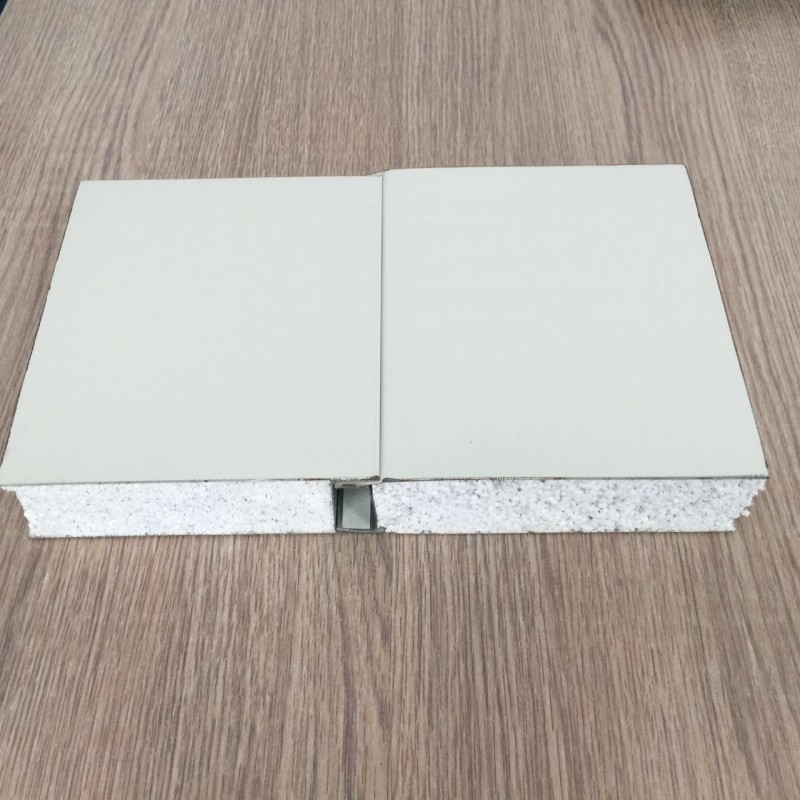

Connection type:tongue and groove or hidden lock
Surface:smooth, corrosion resistant and easy to clean
Colors:white, blue, grey (according to RAL catalogue)
⚙️Specifications
| Parameter | Meaning |
Panel thickness |
50mm/75mm/100mm |
Steel thickness |
0.376–0.6 mm |
Filler density |
150–180 kg/m³ |
Fire resistance |
1-3 hours |
Thermal conductivity |
≤ 0.045 W/(m K) |
Sound insulation coefficient |
≥ 30 dB |
Panel width |
950 mm / 1150 mm |
Panel length |
Up to 6 m (up to 9 m on request) |
Installation |
Quick assembly, hidden fastening |
✅Product benefits
?Outstanding fire resistance- silica does not burn and does not emit toxic substances.
?Lightness and strength- facilitates transportation and installation without loss of strength.
?Hygiene- smooth surface is easy to clean, suitable for sterile rooms.
?Excellent insulation- good noise protection and temperature retention.
⚙️Quick installation- Machine production ensures stable quality and precise geometry.
?Applications

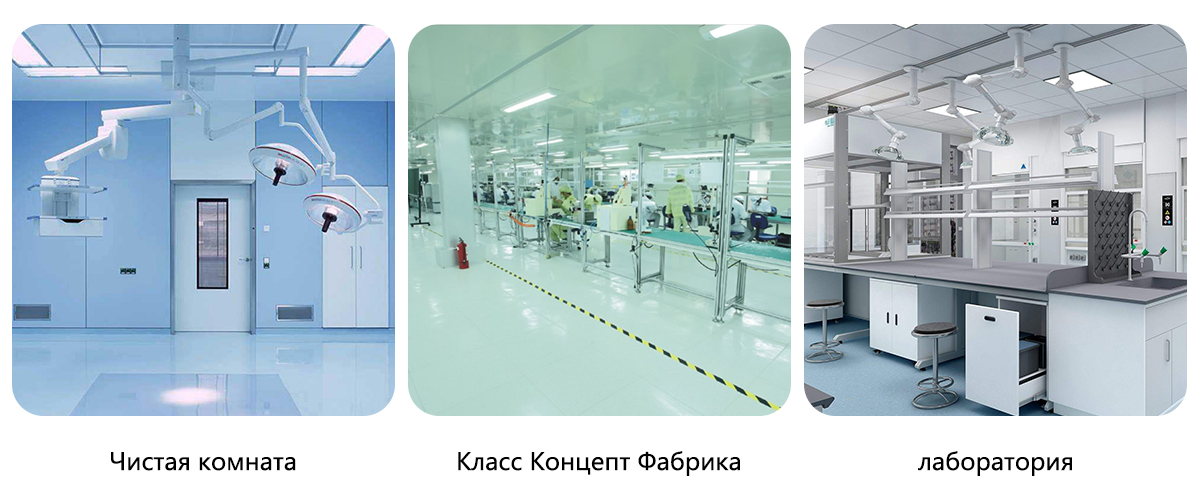

?Clean rooms(pharmaceuticals, medicine, microelectronics)
?Medical institutionsand laboratories
?Food industry
?Research and development complexes
?Factories, workshops, industrial buildings
?Modular designs, temporary and prefabricated buildings
