Handmade Foam Sandwich Panel
Excellent fire resistance thanks to the non-combustible rock wool core.
Excellent thermal and sound insulation.
High structural strength and durability.
Light weight and easy installation reduce construction time.
Good resistance to moisture, mold and pests.
Custom sizes and finishes to suit project needs.
Eco-friendly and recyclable materials.
Product description

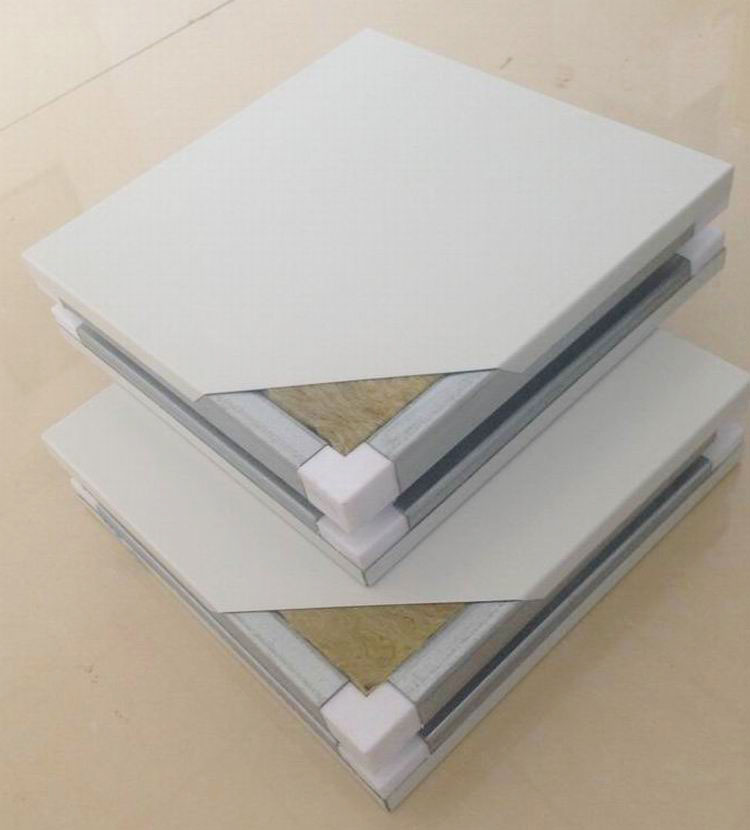

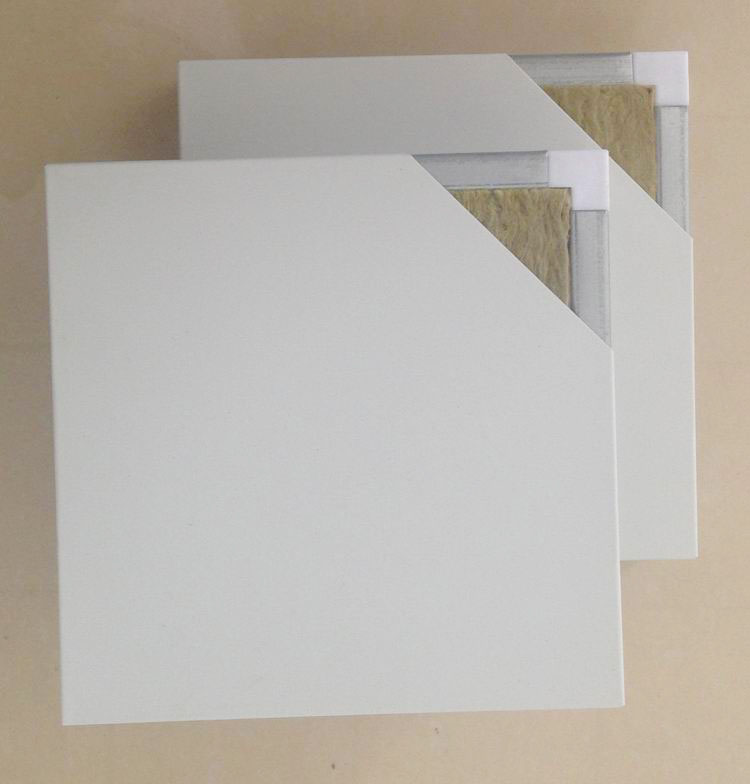

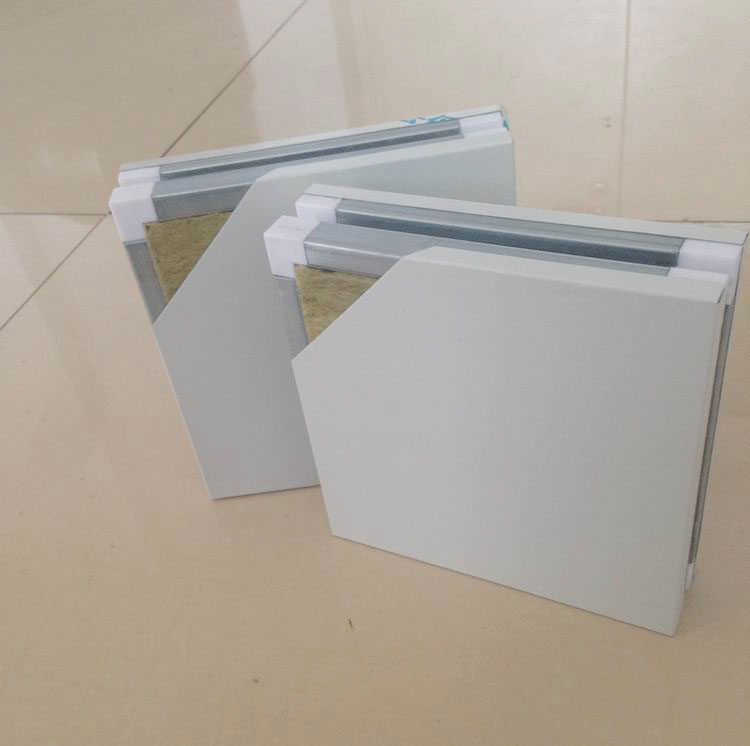

Hand-made rock wool sandwich panel with painted steel cladding is a highly efficient building material developed specifically for areas with special requirements for heat and sound insulation, as well as fire safety. The panel is made by hand, which ensures high assembly accuracy, strength and excellent sealing of joints.
⚙️Technical specifications
| Parameter | Meaning |
|---|---|
| Thickness of steel sheet | 0.376 mm – 0.6 mm |
| Filler | Stone wool |
| Panel width | 980 mm / 1180 mm |
| Panel thickness | 50mm / 75mm / 100mm / 150mm |
| Panel length | Individually made to order |
| Surface protection | Transparent protective film |
| Fire resistance duration | From 1 to 3 hours |
| Thermal conductivity | ≤ 0.025 W/(m K) |
| Density of stone wool | 50 kg/m³ |
| Adhesive strength | ≥ 0.09 MPa |
| Load-bearing capacity at deflection Lo/200 | ≥ 0.5 kN/m² |
✅Product benefits
?Excellent fire resistance
The mineral wool filler provides high heat resistance and flame retardation.?Soundproofing and thermal insulation
Effective reduction of noise levels and heat loss.?Smooth and hygienic surface
Easy to clean, corrosion resistant, does not promote accumulation of dust and germs.?️Precise hand assembly
Provides ideal sealing of joints and increased strength of the entire structure.?Multifunctionality
Suitable for various clean and technical rooms.

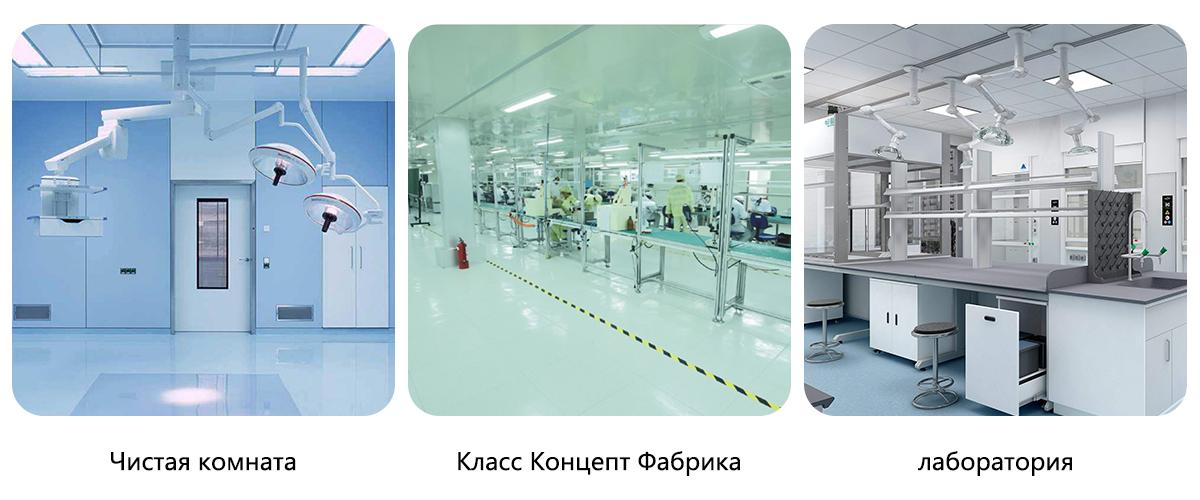

?Application areas
Cleanrooms
Operating and sterile areas
Pharmaceutical and food enterprises
Electronic and chemical industry
Production laboratories and research centers
Medical institutions and hospitals
