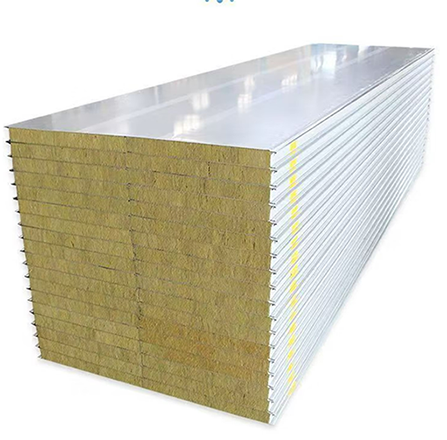

Mechanical Mineral Wool Wall Panel
?Fire resistance time
Stone wool does not support combustion and is resistant to high temperatures.
❄️Heat and sound insulation
Effectively retains heat and reduces noise levels, ideal for sterile areas.
?️Strength and dimensional stability
The panels do not deform during long-term use and can withstand mechanical loads.
?Hygiene
The smooth steel surface is easy to clean and resistant to detergents and disinfectants.
⚙️Quick and easy installation
Thanks to the precise geometry and locking connection, the panels are quickly installed.
?Product description

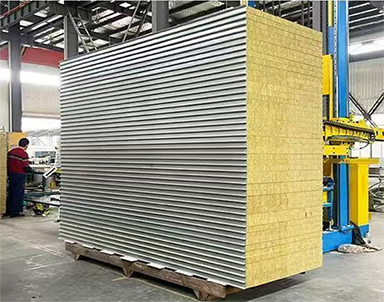

Sandwich panels with rock wool filling are three-layer building panels manufactured on an automated line. The outer layers are made of painted galvanized steel, and the inner insulation is non-flammable and soundproof rock wool.
These panels are ideal for the construction of walls, partitions and ceilings in clean rooms, industrial buildings and other facilities where a high degree of fire resistance and thermal insulation is required.
⚙️Specifications
| Parameter | Meaning |
|---|---|
| Panel type | Machine made |
| Lining | Painted galvanized steel (PE/PVDF) |
| Thickness of the cladding | 0.376–0.6 mm on each side |
| Filler | Stone wool with a density of 100–120 kg/m³ |
| Panel thickness | 50mm, 75mm, 100mm, 150mm (optional) |
| Panel width | 950 mm / 1150 mm (working) |
| Panel length | Up to 6 meters (or on request) |
| Fire resistance | 1-3 hours |
| Thermal conductivity coefficient | ≤ 0.045 W/(m·K) |
| Soundproofing | ≥ 30 dB |

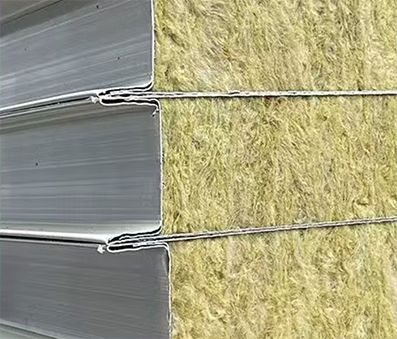

| Connection method | Locking system (Z-lock, hidden connection) |
?Product benefits
?Fire resistance class A1
Stone wool does not support combustion and is resistant to high temperatures.❄️Heat and sound insulation
Effectively retains heat and reduces noise levels, ideal for sterile areas.?️Strength and dimensional stability
The panels do not deform during long-term use and can withstand mechanical loads.?Hygiene
The smooth steel surface is easy to clean and resistant to detergents and disinfectants.⚙️Fast and easy installation
Thanks to the precise geometry and locking connection, the panels are quickly installed.

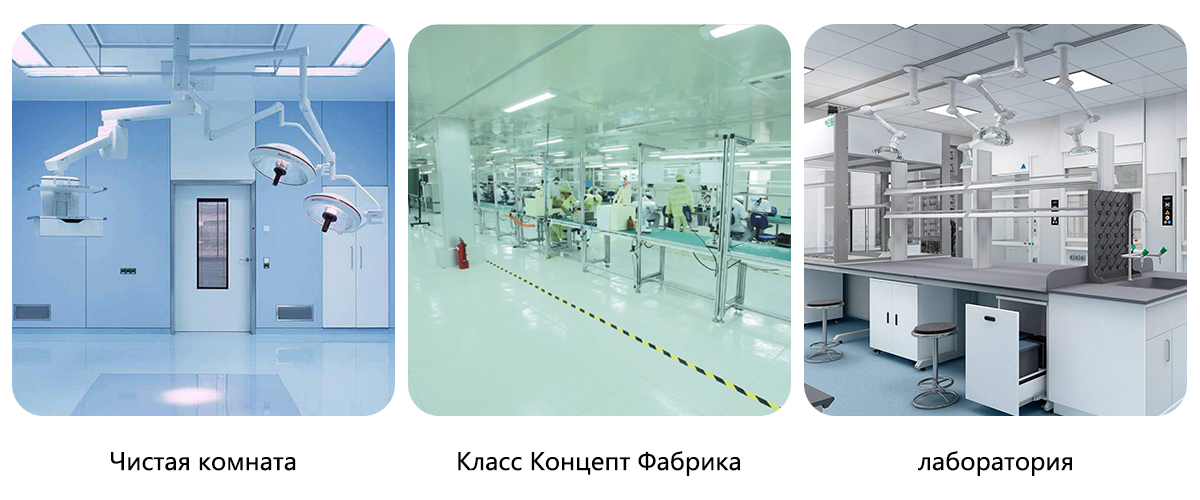

?Applications
Clean rooms (laboratories, pharmaceuticals, electronics)
Industrial and warehouse buildings
Modular buildings and temporary structures
Food industry
Medical institutions and operating rooms
Aerospace and scientific infrastructure
?Additionally
Panels with antimicrobial coating
Corner elements and additional profiles
Panels with internal cable channels
Combination with other types of fillers (e.g. glass-magnesium sheet + rock wool)
