Magnesite-Mineral Wool Wall Panel
?Increased fire resistance
The combination of glass-magnesium sheet and rock wool provides excellent fire resistance.
?Sound and heat insulation
The panel structure effectively absorbs sound and retains heat.
?High strength and resistance to deformation
The glass-magnesium sheet strengthens the panel and increases its stability.
?Smooth, easy to clean surface
Suitable for rooms with high hygiene requirements.
⚙️Precise geometry and easy installation
Ideal for assembly on-site with tight deadlines.
?Product description

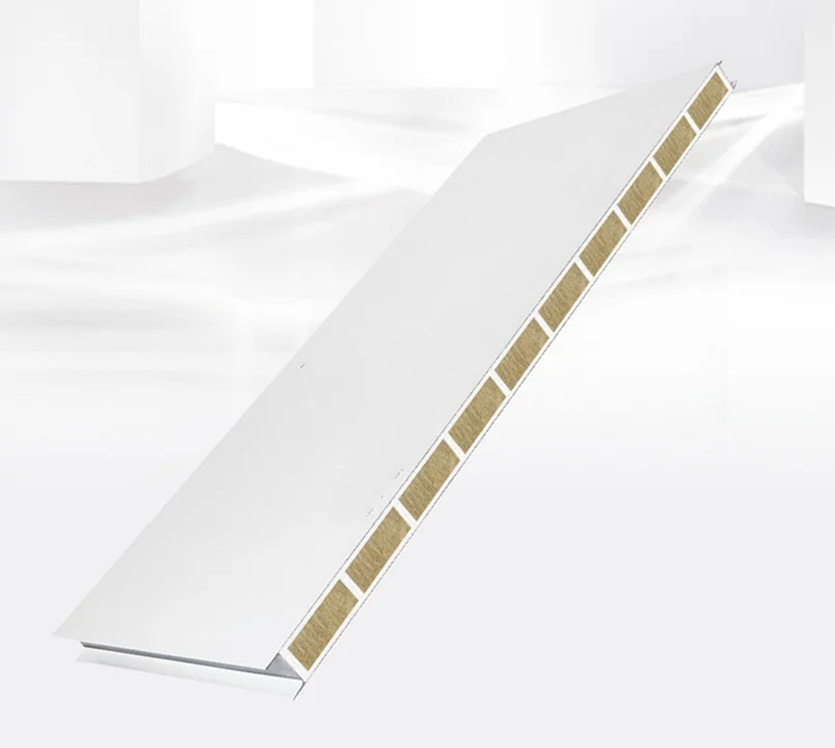

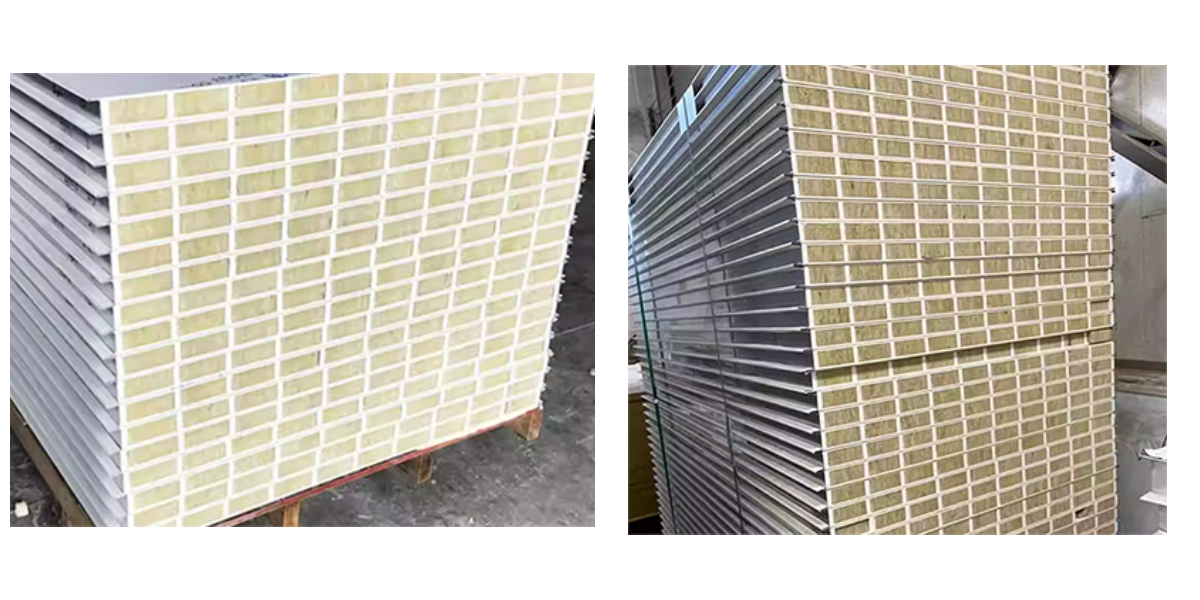

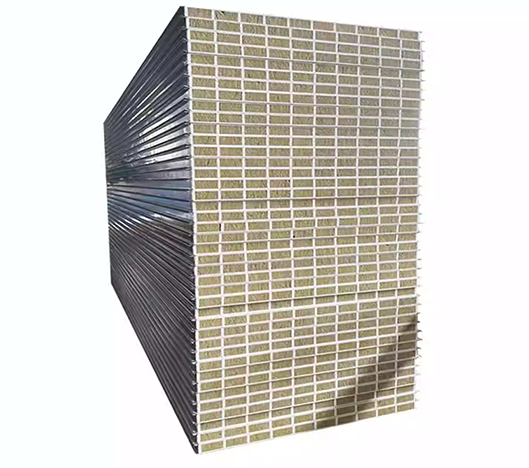

Sandwich panels with hollow glass-magnesium core and rock wool are high-tech building panels manufactured on a fully automated line. Painted galvanized steel is used as the outer shell, and the core consists of non-combustible rock wool and fire-resistant glass-magnesium sheet with a hollow structure.
This combination provides excellent heat resistance, sound insulation and strength, making the panels ideal for clean rooms, laboratories, pharmaceutical and medical facilities.
⚙️Specifications
| Parameter | Meaning |
|---|---|
| Panel type | Machine made |
| External material | Colored galvanized steel |
| Steel thickness | 0.376–0.6 mm |
| Internal filling | Hollow glass magnesium sheet + rock wool |
| Density of stone wool | 100–120 kg/m³ |
| Panel thickness | 50/75/100 mm (other options on request) |
| Standard width | 950 mm / 1150 mm |
| Panel length | Up to 6000mm (can be customized) |
| Fire resistance | 1-3 hours |
| Thermal conductivity | ≤ 0.045 W/(m K) |
| Soundproofing | ≥ 30 dB |
| Installation | Lock connection / hidden fastening |
?Product benefits
?Increased fire resistance
The combination of glass-magnesium sheet and rock wool provides excellent fire resistance (class A1).?Sound and heat insulation
The panel structure effectively absorbs sound and retains heat.?High strength and resistance to deformation
The glass-magnesium sheet strengthens the panel and increases its stability.?Smooth, easy to clean surface
Suitable for rooms with high hygiene requirements.⚙️Precise geometry and easy installation
Ideal for assembly on-site with tight deadlines.

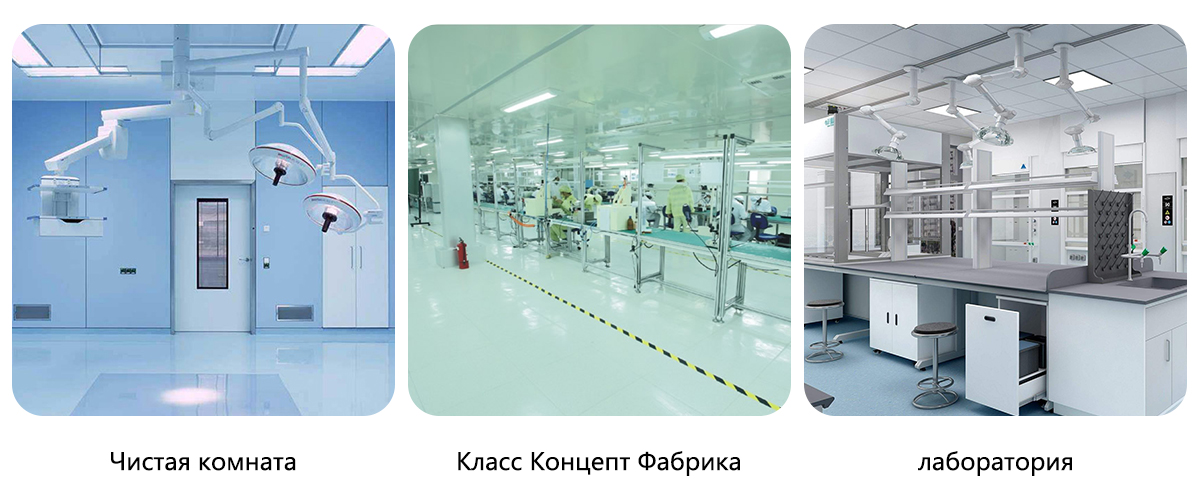

?Applications
Laboratories and clean rooms
Pharmaceutical and medical institutions
Electronics and semiconductor manufacturing plants
Food industry premises
Scientific research centers
Sterile areas in the aerospace industry
![Magnesite-Mineral Wool Wall Panel]( "Magnesite-Mineral Wool Wall Panel")
?Additional options
Coating with antibacterial properties
Options with protective film
Combined structure with aluminum honeycomb core
Perforation for ventilation areas (optional)
