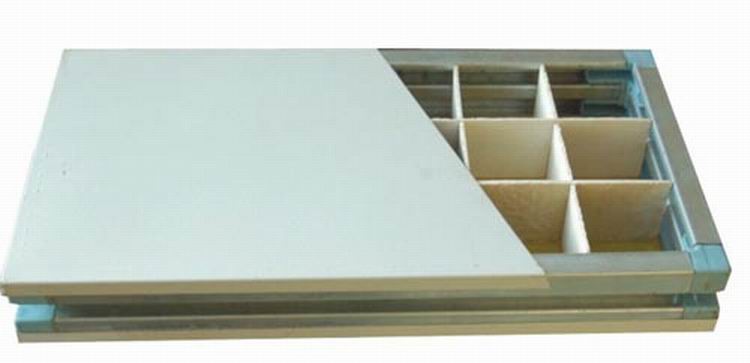

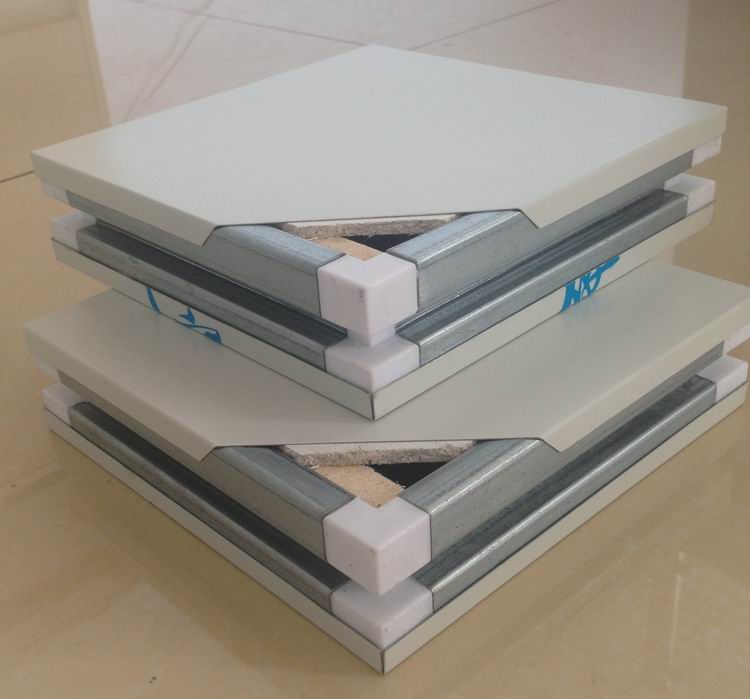

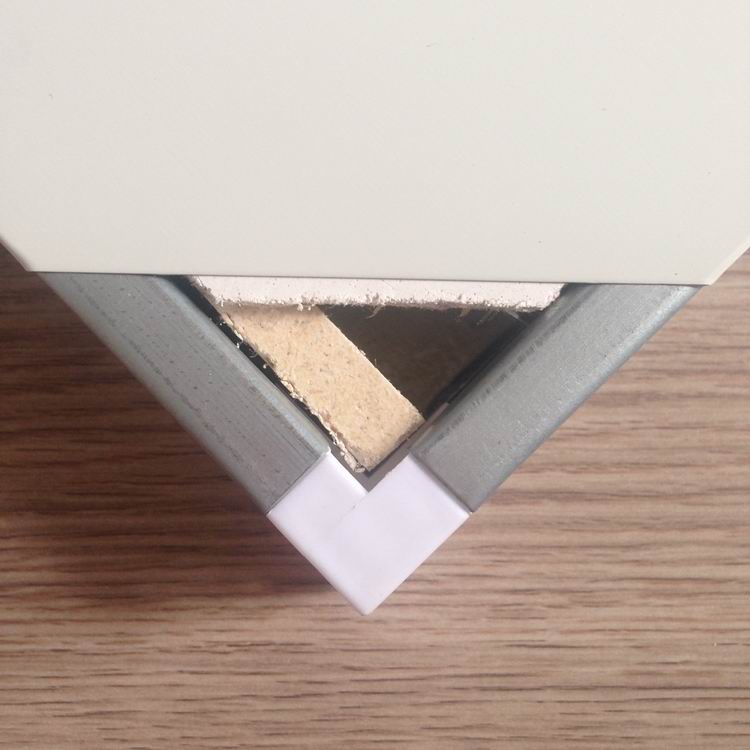

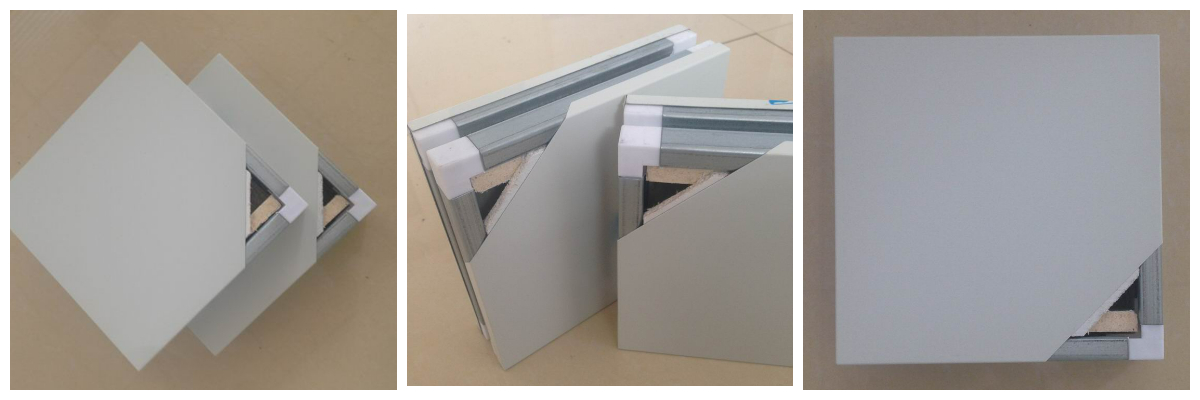

Handmade Sandwich Panel Made of Hollow Glass Magnesium
Lightweight and durable:Hollow core reduces weight while maintaining structural strength
Excellent fire resistance:Glass-magnesium core provides high fire safety
Sound and heat insulation:Ideal for controlled environments such as hospitals and clean rooms
Easy installation:Handcrafted construction with sealed edges for quick and clean installation
Aesthetic flexibility:The colored steel surface is available in various colors to match the architectural design.
Environmental friendliness:Low formaldehyde, asbestos-free, recyclable materials
1. Product Information:
A handmade sandwich panel made of hollow glass of magnesium color consists of a high-quality glass-fruity core in combination with steel sheets with a colored coating. It has excellent fire resistance, isolation, sound insulation and environmentally friendly properties. This panel is widely used in clean rooms, hospitals, laboratories, at the food industry and in modern offices, especially in areas with high environmental requirements. Its light, but strong design makes it suitable for ceilings, walls and partitions.
2. Technical characteristics:
| Paragraph | Specification |
| The material of the core | Half -fiber magnesium core of fiberglass (magnesium -reinforced fiber, hollow or cellular structure) |
| Surface material | A steel plate with a colored coating (usually a thickness of 0.376–0.6 mm) |
| The range of panels thickness | 40–200 mm (customizable) |
| Fire resistance time | 1-3 Hours |
| Thermal insulation | Low thermal conductivity, excellent insulation properties |
| Soundproofing | Good sound insulation, suitable for noise-sensitive environments |
| Size Specification | Standard width 1000mm, adjustable length |
| Surface treatment | Flat |

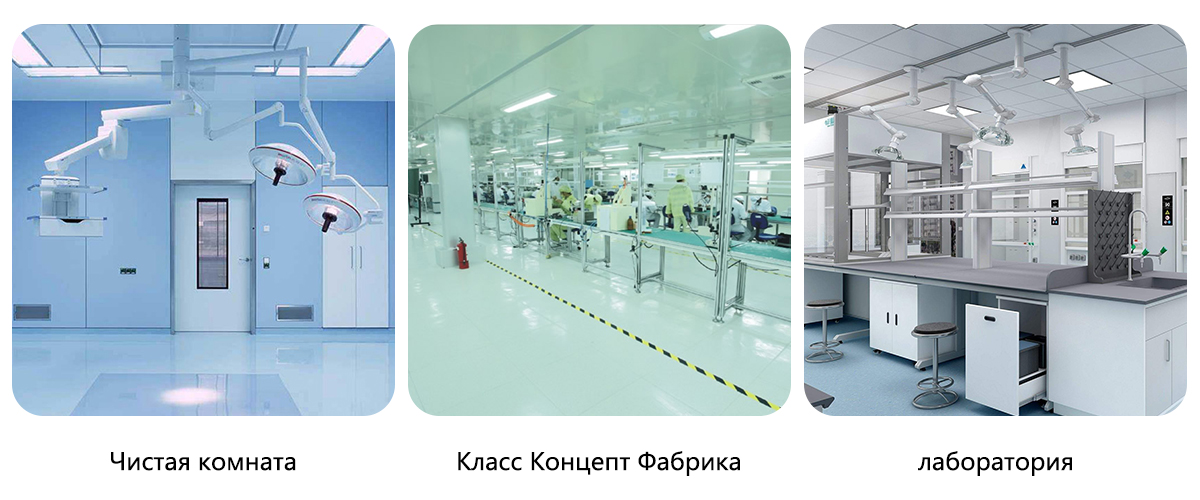

3. Application scenarios:
Cleanrooms and laboratories: Suitable for areas requiring strict environmental control, such as electronics manufacturing, pharmaceutical factories and chemical laboratories;
Hospitals and medical facilities: ideal for hospital wards, operating rooms, diagnostic rooms and other places with high requirements for fire resistance, insulation and sound insulation;
Offices and commercial buildings: used for office walls and ceilings, providing high quality sound insulation and thermal insulation;
Food factories and warehouses: suitable for food production and storage, provide environmental control and fire protection;
Exterior Wall and Ceiling Systems: Used for exterior walls, partitions, ceilings and other building systems, enhancing both aesthetics and structural safety.
