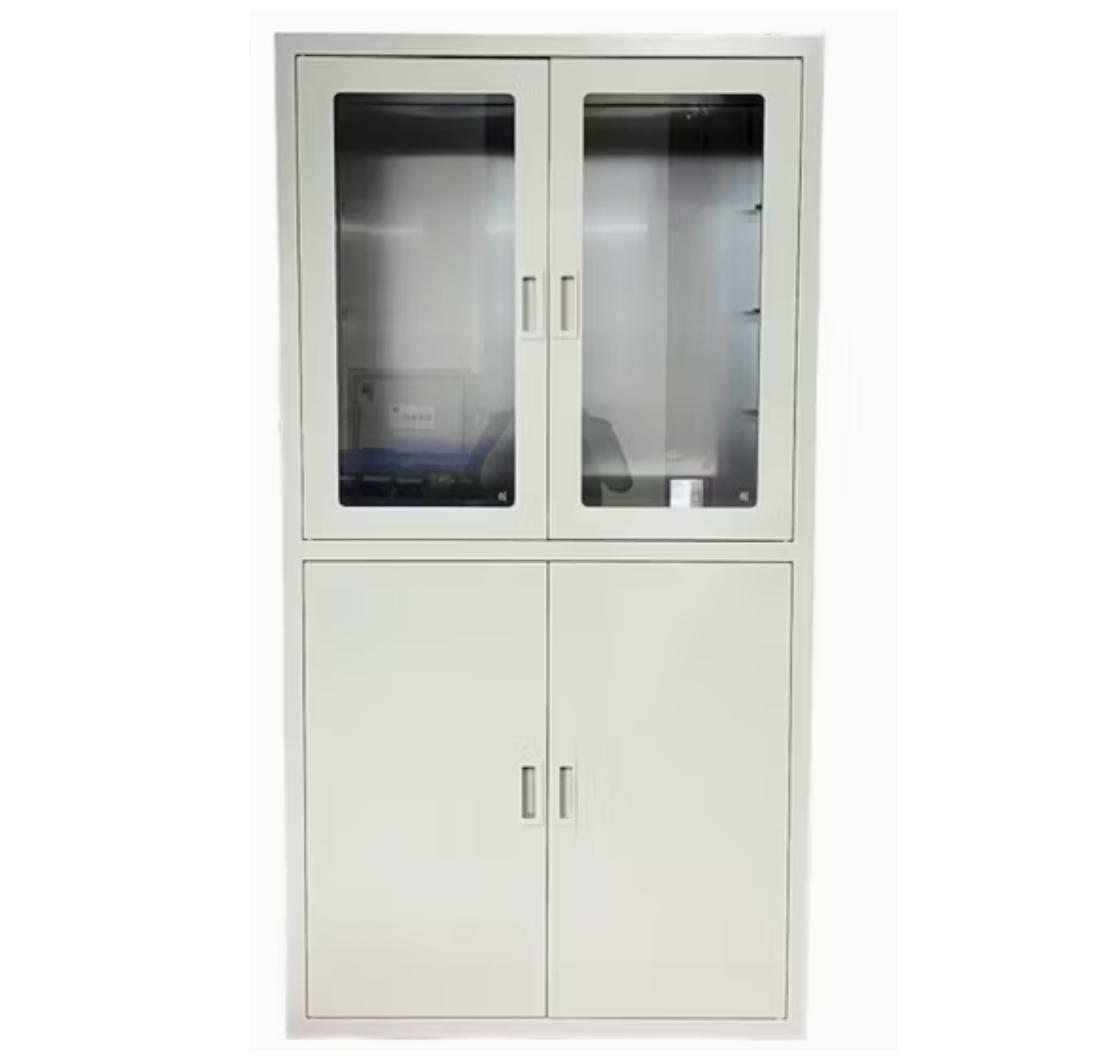

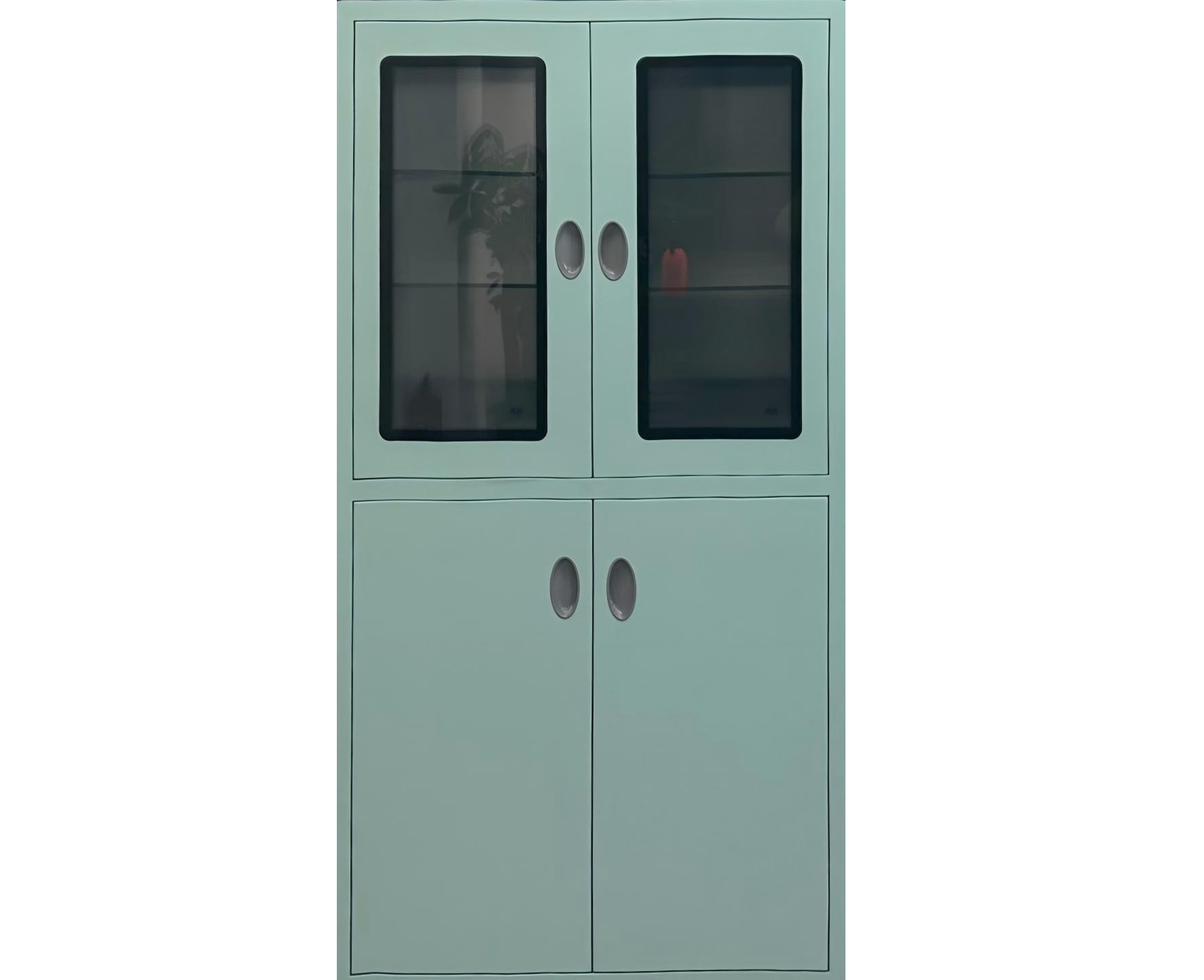

Medical Anesthesia Cabinet
Built-in design- space saving, aesthetically pleasing combination with the wall of the operating room or anesthesiology room.
Made of high quality stainless steel (SUS304)— resistant to corrosion, easy to clean, meets the requirements of sterile rooms.
Sliding or hinged doors- ease of access, minimization of dust accumulation.
Equipped with drawers and shelves- provides convenient storage of medications, anesthetics and consumables.
Ergonomic fittings- handles with dust-proof design, soft opening and closing.
Antistatic powder coating(if necessary) - increases safety and wear resistance.
Complies with cleanroom and operating room standards.

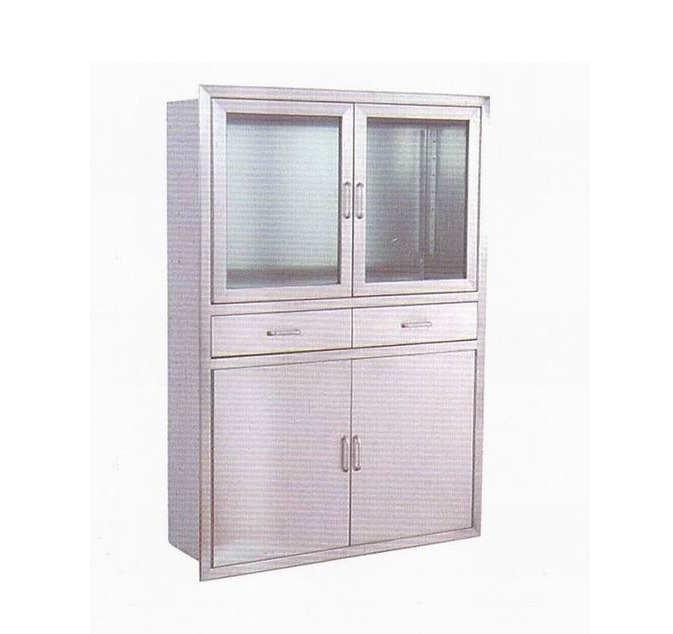

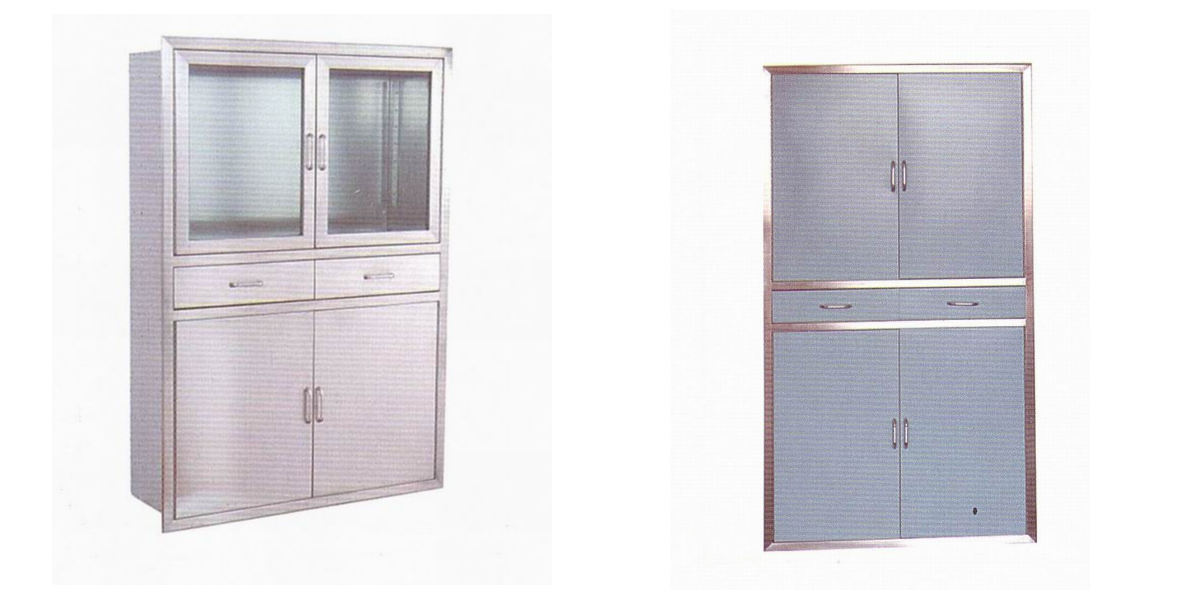

Built-in stainless steel anesthesia cabinet
It is a necessary storage element in the operating room, designed to store various medications and instruments used in operating rooms. Provides convenient management and sanitary cleanliness of medicines and equipment.
Features of the built-in anesthesia cabinet:
Manufactured using advanced foreign technologies.
The body is made of imported stainless steel SUS304, easy to clean.
The doors are made of stainless steel or PVC-coated steel.
The sliding doors are equipped with stamped guides with dust-proof rollers - they do not accumulate dust and are easy to clean.
The double-sided lifting doors open 120° using reliable hinges and fit tightly to the body.
The front frame is made of high-quality SUS304 stainless steel or special aluminum profile with a 45° joint, the corners of the body are without gaps - the assembly technology is at the highest level.
The drawers are equipped with a special quiet running system, and the guides have shock-absorbing springs for smooth opening.
The handles have a semicircular ergonomic design and do not accumulate dust.
The door frame is made of SUS304 stainless steel or a special aluminum profile - a tight and aesthetic fit.
Special fastening guides and shock-absorbing fixing elements are installed inside. Internal shelves can be both vertical and horizontal, made of stainless steel or tempered glass.
The special curved profile ensures a tight fit to the wall and prevents dust accumulation.
Aesthetic appearance, durability, compliance with sanitary requirements of clean operating rooms.
Specifications
Type |
O.D |
Hole size |
Built-in |
900X350X1700mm |
865X1650mm |
900X350X1300mm |
865X1250mm |
|
Stainless steel outer frame, four hinged doors; upper and lower stainless steel sliding doors, two stainless steel drawers, two stainless steel shelves, anti-static powder coating surface. |
||
Design Features
Flush to wall: ideal for clean rooms
Smooth welds, easy to clean and disinfect
Anti-corrosion resistance for long-term use
Corners and edges are rounded to prevent injury
Possibility of individual configuration (number of shelves, type of doors, lighting)
Advantages
Compliance with sanitary and medical standards
Ergonomic design: easy access without protruding elements
Space saving thanks to built-in design
Hygienic safety – easy to clean, does not accumulate dust
Durability and reliability under intensive use

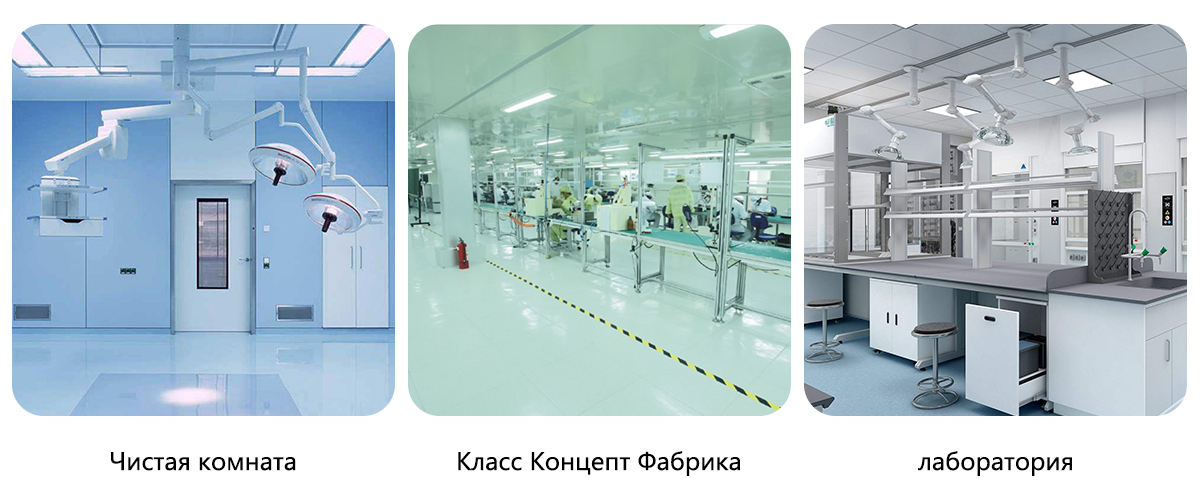

Applications
Operating blocks
Anesthetic zones
Clean rooms
Sterilization
Laboratories and treatment rooms
All structure, size and accessories can be customized.
