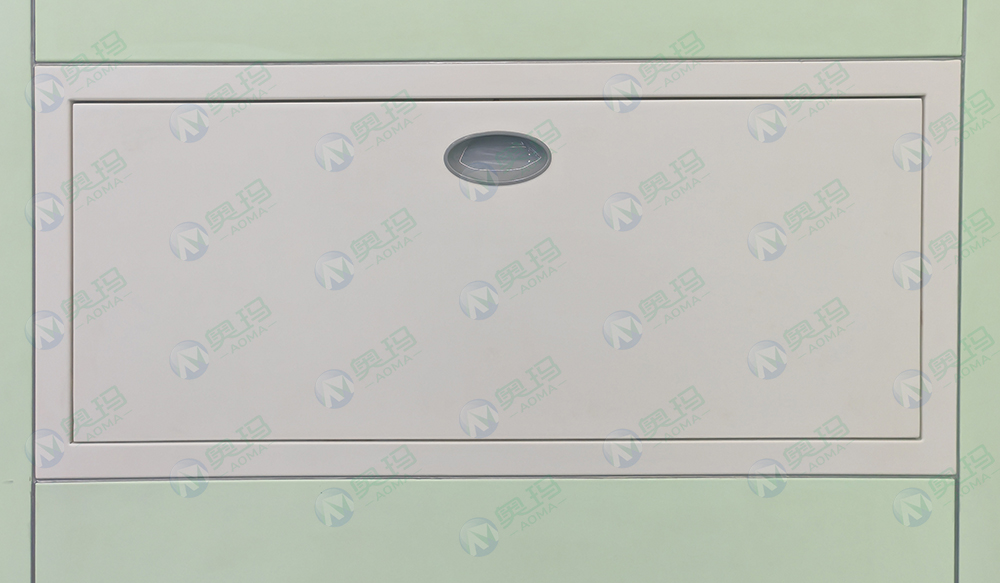

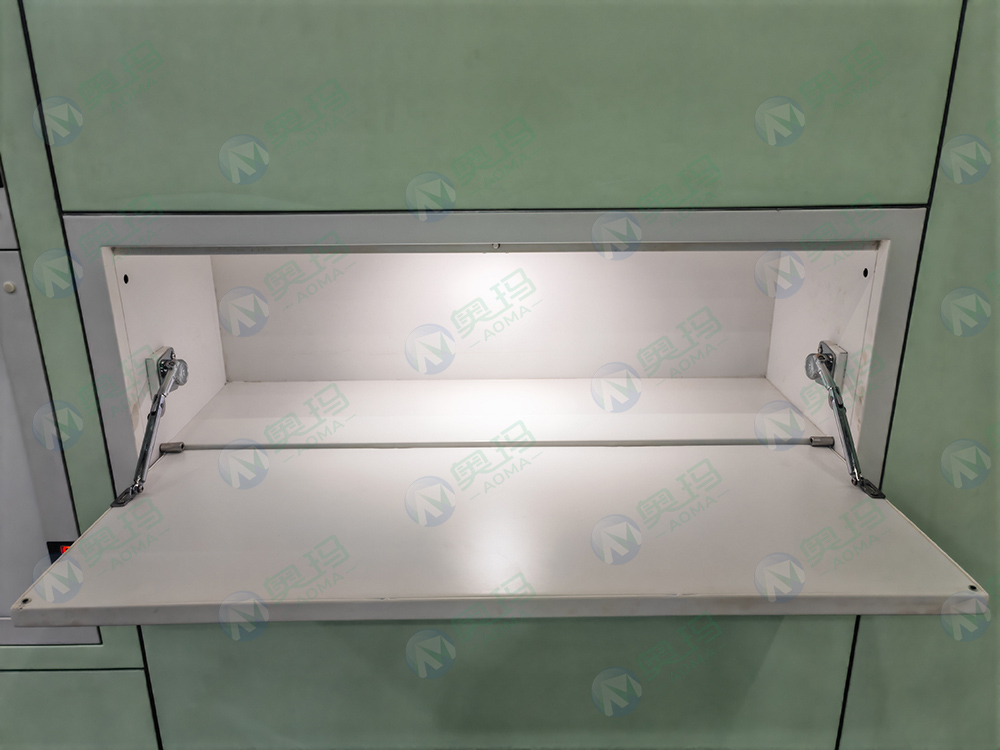

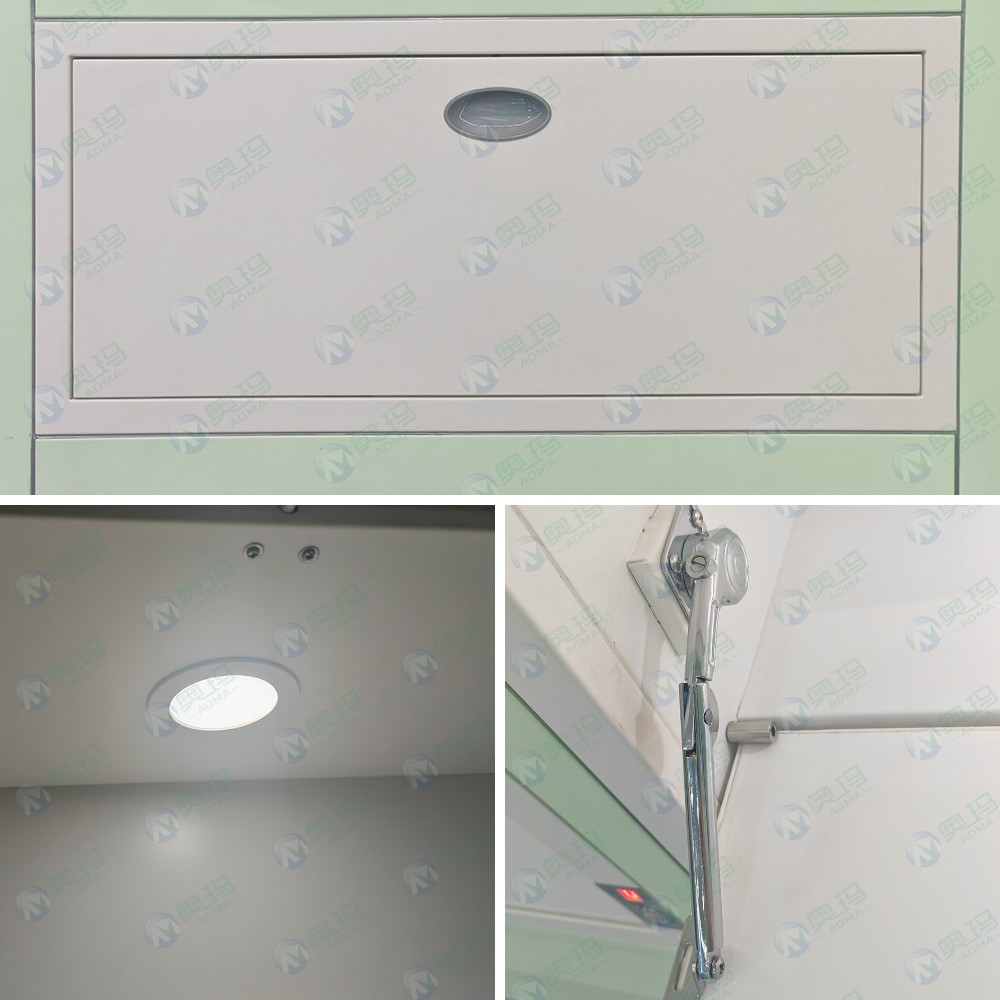

Built-in medical desk
Hygienic surface: Electrolytic steel with ISO 22196 antibacterial coating (99.9% reduction of microorganisms), resistant to disinfectants such as hydrogen peroxide.
Structural Durability: 1.2mm thick SUS304 stainless steel core can withstand 25kg static load.
Reinforced hinges provide over 8,000 opening/closing cycles.
Ready for customization:
Possibility of changing dimensions, finishing (RAL colours) or adding integrated functions:
✓ USB/power sockets
✓ Pull-out medical chart dividers
✓ IV drip mounts
Product overview
The MedWall-Mount Integrated Medical Charting Table is a compact stainless/electrolytic steel workstation designed for the clinical environment. Dimensions of 700x400x250 mm with a recessed cutout of 650x350 mm allow it to be seamlessly integrated into hospital walls, intensive care units and diagnostic rooms. The unit serves as a sterile documentation surface, medication preparation area or docking station for portable devices, meeting ISO 13485 medical device standards.
Key Benefits
Hygienic surface: Electrolytic steel with ISO 22196 antibacterial coating (99.9% reduction in microorganisms), resistant to disinfectants such as hydrogen peroxide.
Structural Durability: 1.2mm thick SUS304 stainless steel core can withstand 25kg static load.
Reinforced hinges provide over 8,000 opening/closing cycles.
Ready for customization:
Possibility of changing dimensions, finishing (RAL colours) or adding integrated functions:
✓ USB/power sockets
✓ Pull-out medical chart dividers
✓ IV drip mounts
Functional features
Space optimization: Built-in design eliminates protrusions in high-traffic hallways.
Ergonomic tilt: The 5° tilted surface prevents objects from slipping.
Quiet operation: Damped closing mechanism (acoustic standard NF S90-151).
Tool-free adjustment: Height adjustable via internal hex bolts (±20mm).
Areas of application
Intensive care units:
Maintaining medical records without taking up space in mobile carts.
Operating substations:
Pre-positioning of sterile instruments.
Laboratory documentation:
Chemical resistant surface for magazines.
Admissions Department:
Quick access to medical records during resuscitation measures.
Specifications
| Parameter | Characteristics |
| Material | SUS304 Stainless Steel/Electrolytic Steel (SGS Certified) |
| Surface treatment | Electropolishing + Antimicrobial coating |
| Load capacity | 25 kg (tested according to EN 1021-1/2) |
| Compliance | ISO 13485, EN 60601-1 Medical electrical equipment |
Why choose this product?
30% faster installation than competitors: Pre-drilled templates included.
Cost-effectiveness: Eliminates the need for separate furniture (from $1,200/unit).
Case study: Charité Hospital in Berlin reduced hospital-acquired infections by 18% after installing antimicrobial workbenches in intensive care units.
