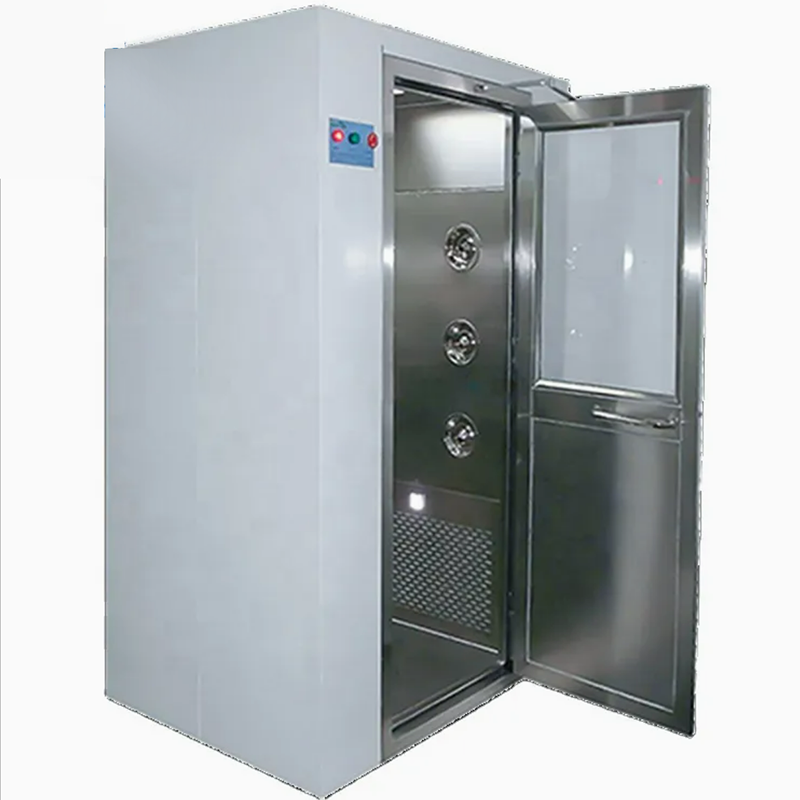

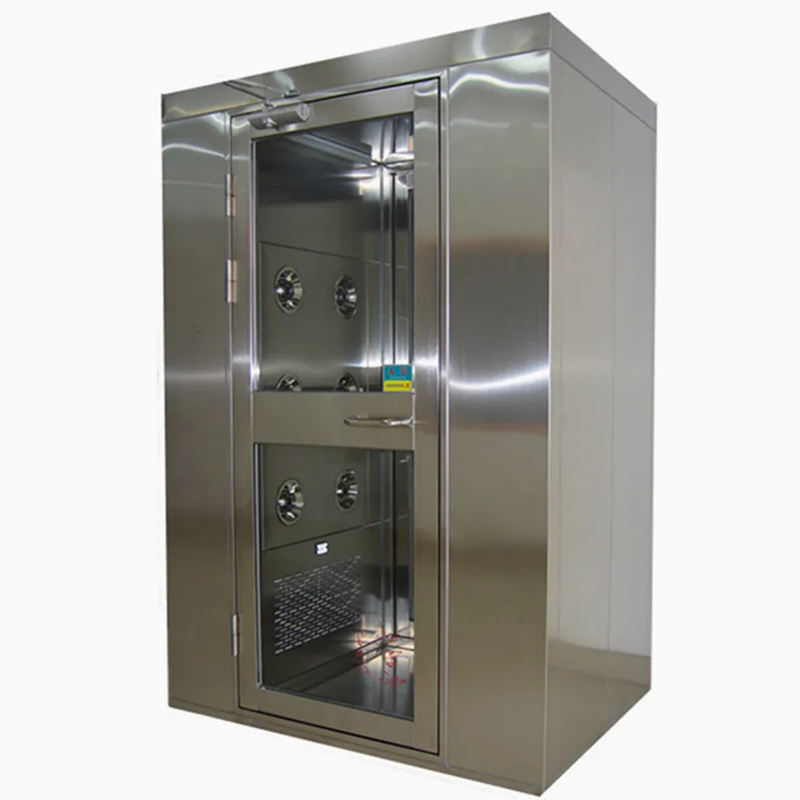

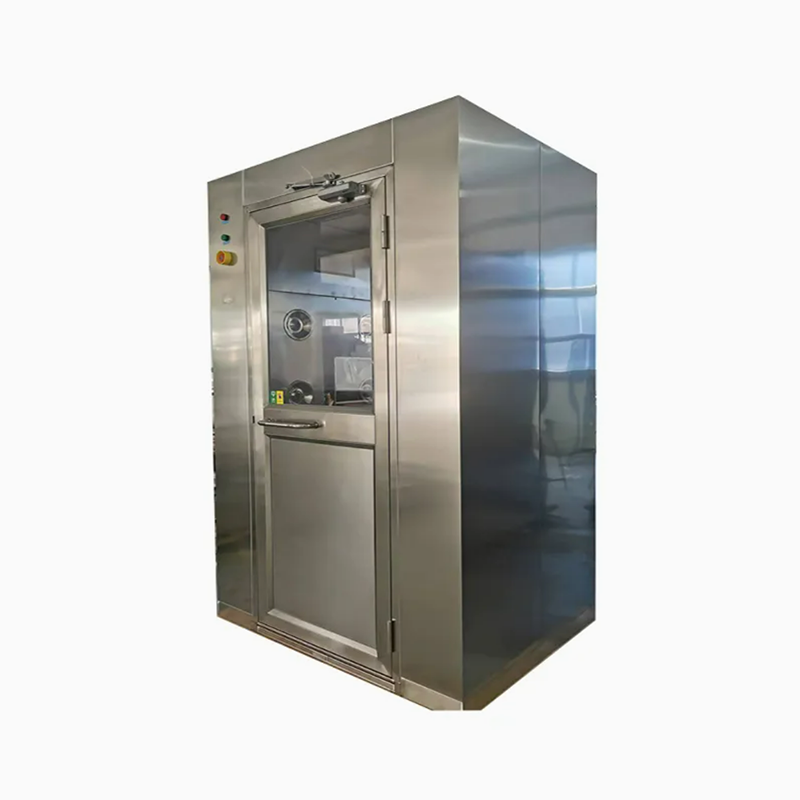

Air gateway for one person | Decision for decontamination at the entrance to clean rooms
Air gateway for one person is important equipment for clean rooms designed to remove dust particles and pollution from personnel in front of the entrance to controlled areas. This product is ideal for pharmaceutical enterprises, laboratories, food industries and electronic enterprises. It provides the integrity of clean rooms, reducing the level of particles and minimizing the risks of pollution.
Technical characteristics of the product
| Parameter | Description |
|---|---|
| Dimensional dimensions | 1200 × 850 × 2050 mm (customizability) |
| Internal dimensions | 750 × 750 × 1950 mm |
| Material (external) | Cold Rolled Powder Coated Steel / Stainless Steel |
| Material (internal) | Stainless steel 304/201 |
| Type of door | Manual or automatic double doors |
| Blowing speed | 20-28 m/s |
| The effectiveness of the HEPA filter | 99,99Procenta |
| The duration of the air shower | Adjustable 0-99 p |
| Nutrition | 380w / 50G |
| The number of snot | 6 (on one side) |
| Maximum power consumption | 550W |
| Weight(kg) | 200kg |
| Dimensions of high-efficiency filter | 600×600×120 mm(1) |
| Control system | Microprocessor control with LED display |
Features and Benefits
Fully enclosed design
Eliminates cross-contamination by separating clean and contaminated areas.
Highly efficient filtration
Equipped with HEPA filters with particle removal efficiency >99.99%.
Powerful air jets
An air flow speed of 25 m/s ensures thorough cleaning of the surface in seconds.
Intelligent control
Programmable control system with LED display and automatic door locking.
Durable and hygienic materials
304 stainless steel provides corrosion resistance and easy cleaning.
Customizability
Options for choosing size, material, sensor types and door opening direction.

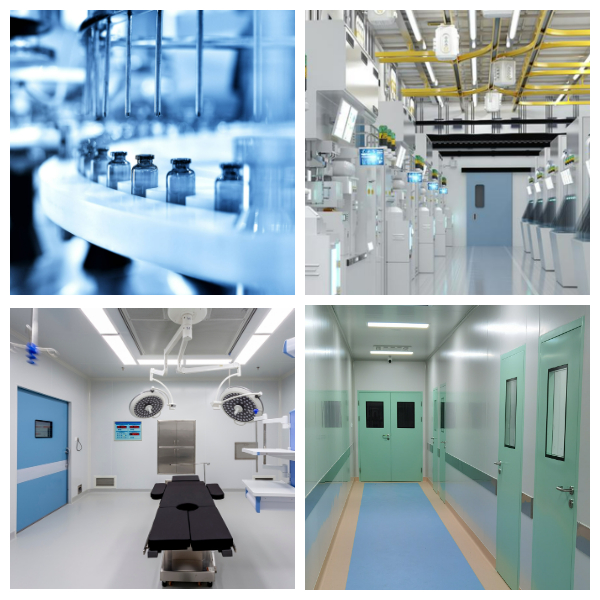

Product application cases
1 – Installed in a pharmaceutical production facility
2 – Used in clean rooms for semiconductors
3 - used in sterile hospitals
4 - integrated with the system of pure corridors
Packaging and delivery
Packaging: durable wooden box with inner foam laying
Shipping: Sea, air or express delivery available
Each unit undergoes safety verification and is packaged in waterproof packaging before sending.

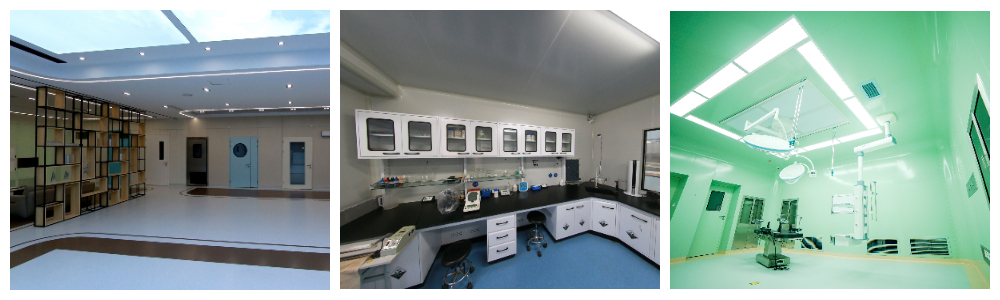

Plant area:
Production area: 40,000 m²
Laboratory of R&D with imitation of a clean room
Certificates: ISO9001
