Clean Room Air Shower
Effective particle removal
High-speed air jets (up to 30 m/s) effectively remove dust and microparticles from clothing and surfaces.Preventing cross contamination
The automatic door locking system prevents the entrance and exit doors from opening simultaneously, protecting the clean area from external contamination.Multi-stage air filtration
The use of pre-filters and HEPA filters ensures a high degree of air purification (up to 99.99% for particles ≥0.3 microns).Hygienic design
The stainless steel housing with a smooth surface is easy to clean and resistant to disinfection.
?Product description:

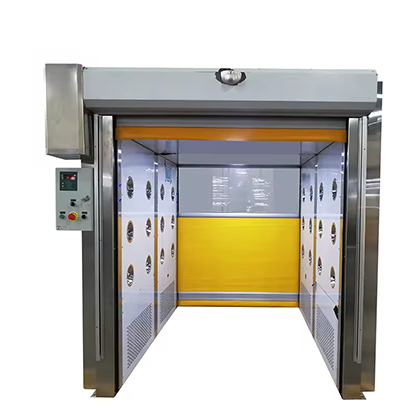

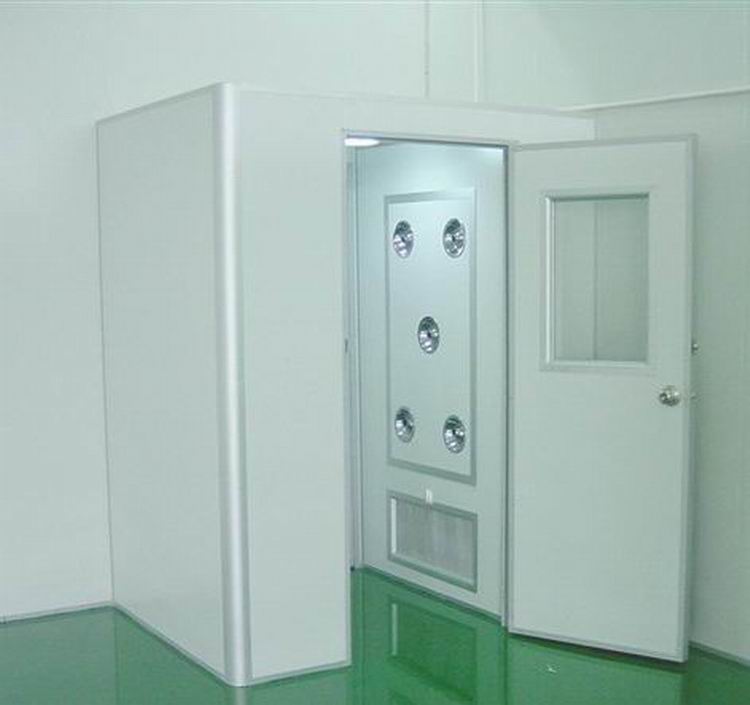

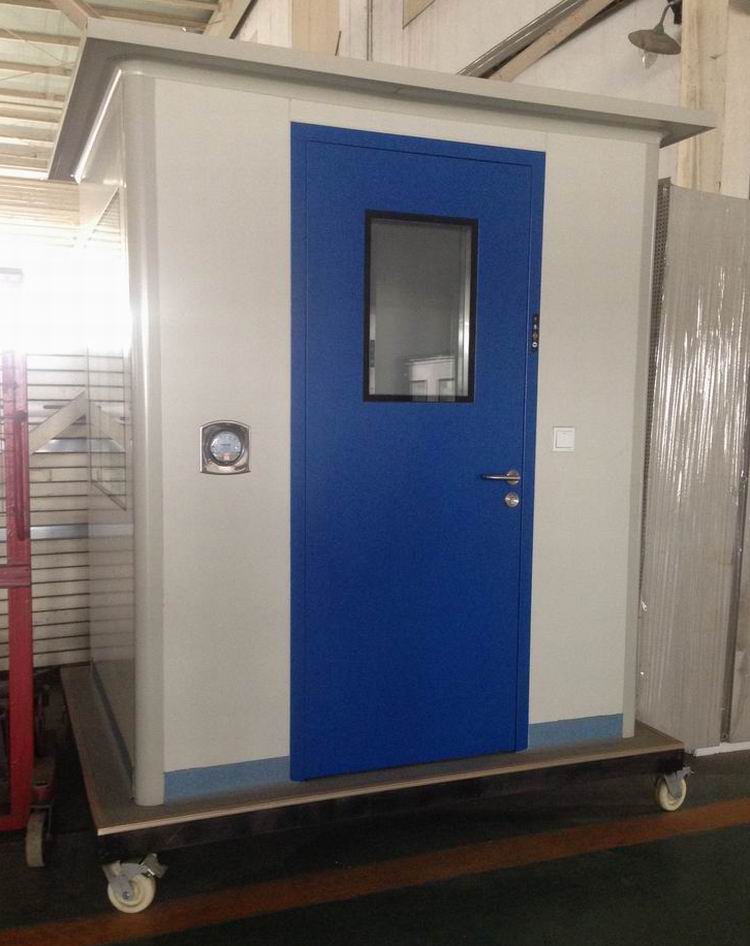

An air shower is a special equipment installed at the entrance to a clean zone, which removes dust and microparticles from the clothes of personnel or the surface of goods using powerful air flows. This is an important element of the pollution protection system in pharmaceutical, medical, food and electronic production.
⚙️Specifications:
| Air shower room for staff | Shower room in the cargo compartment | Air channel | ||||
| FLS-1A | FLS-1C | FLS-2S | Manufactured according to customer requirements | Manufactured according to customer requirements | ||
| Number of users | 1 person | 1 person | 2 people | Three-door color steel sheet | ||
| Time of the air shower | 0-99 seconds, adjustable | |||||
| Number of nozzles | 6 (one side) | 12 (both sides) | 24 (both sides) | |||
| Nozzle diameter | 30 mm | |||||
| Air velocity in the nozzle | 20-28m/s | |||||
| Filter efficiency | For dust with particle size ≥0.5 mm it should be 99.99% (sodium flame method) | |||||
| Overall dimensions (mm) Width*Depth*Height |
750*750*1950 | 750*750*1950 | 750*1600*1950 | 1200*1000*2050 |
||
| Air shower area size mm Width*Depth*Height |
1200*850*2050 | 1550*850*2050 | 1550*1700*2050 | 1200*1000*2050 | ||
| power supply | AN 3N 380V 50Hz | |||||
| Maximum power consumption (W) | 550 |
1100 | 2200 | |||
| Weight (kg) | 200 | 250 | 500 | |||
| Overall dimensions of high efficiency filter (mm) | 600×600×120 mm, 1 pc. | 600×600×120 mm, 2 pcs. | 600×600×120 mm, 4 pcs. | 600×600×120 mm, 1 pc. | ||
The FLS series air shower chamber, in addition to the version with manual door opening, can be made in an automatic version. It is necessary to specify the required type when placing an order. In addition to standard control using an electromagnetic lock, it is possible to manufacture a camera in an explosion-proof design or other special versions - subject to prior agreement with the customer. It is also possible to modify the chamber with three doors, which provides entry and exit at an angle of 90 degrees. To be specified when ordering. |
||||||
?Product advantages:
Highly efficient cleaning— air flow ≥20 m/s removes up to 99% of particles from the surface.
Sealing and contamination control- automatic door locking eliminates cross-contamination.
Easy cleaning- smooth surfaces made of stainless steel or laminated steel, resistant to disinfection.
Intelligent control- digital display, blowing time setting, voice prompts.
Modular design— can be manufactured to the required dimensions, number of users and flow direction.

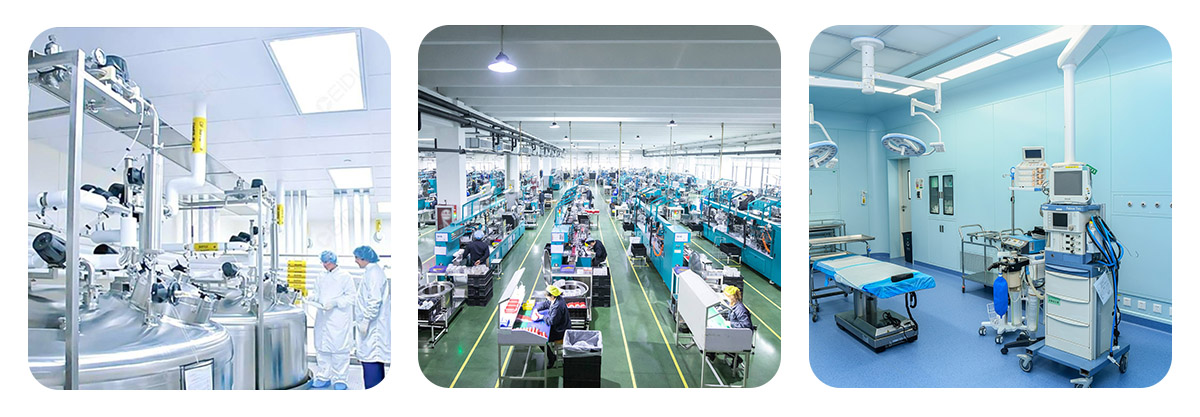

?Application areas:
Pharmaceutical factories
Hospitals and operating rooms
Laboratories and research centers
Food industry
Microchip and electronics manufacturing
Space and biotechnology industry
