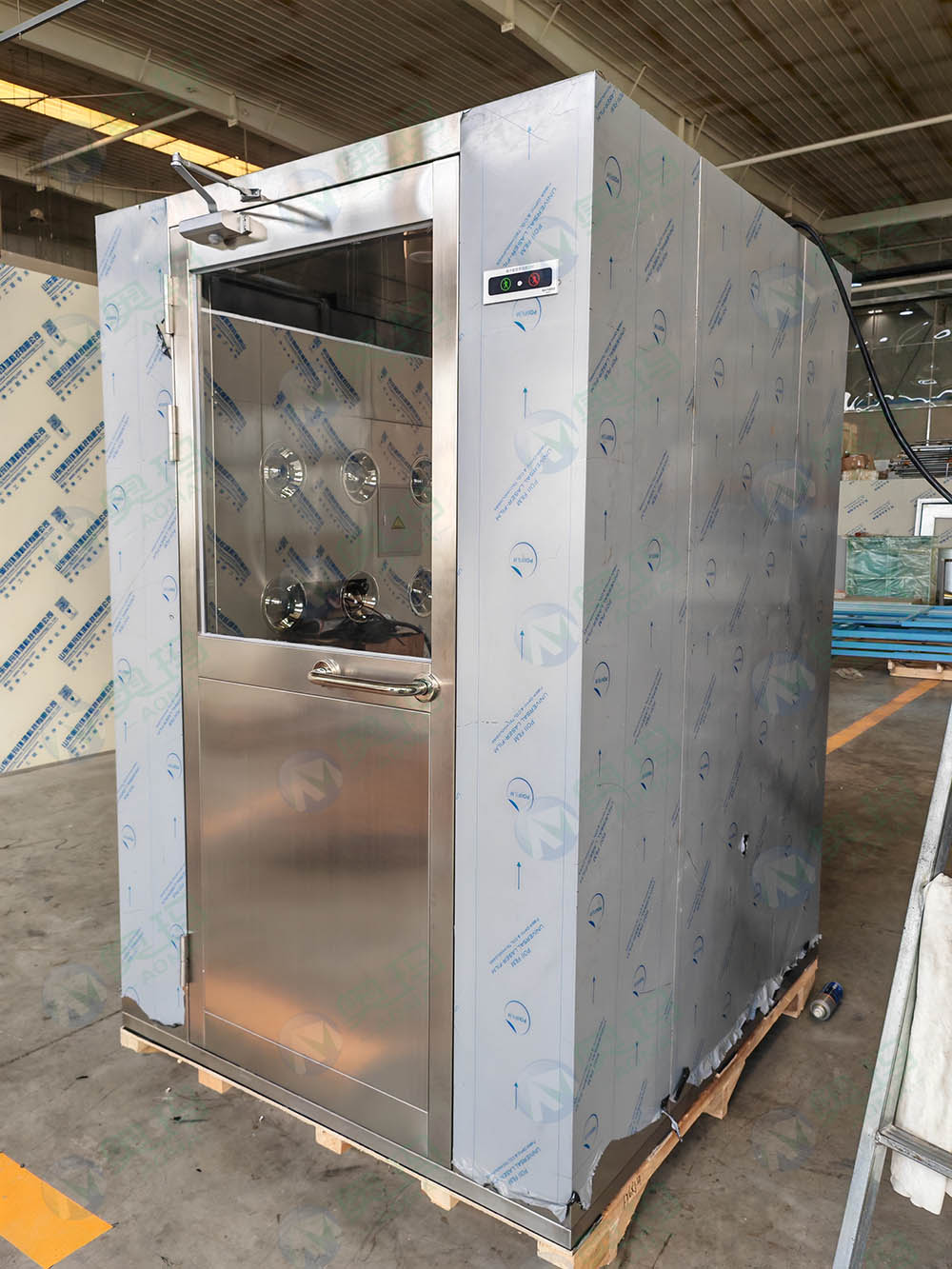

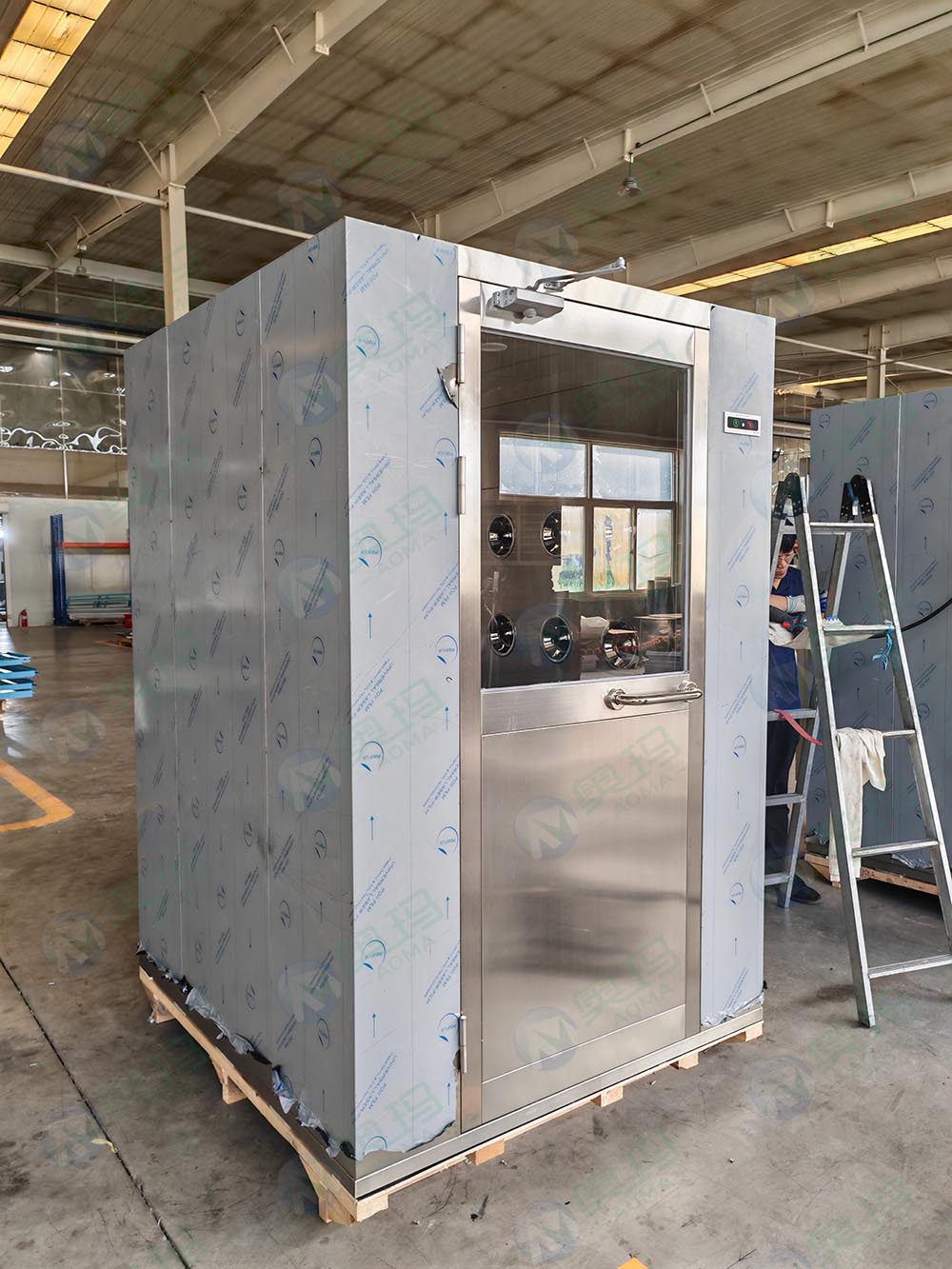

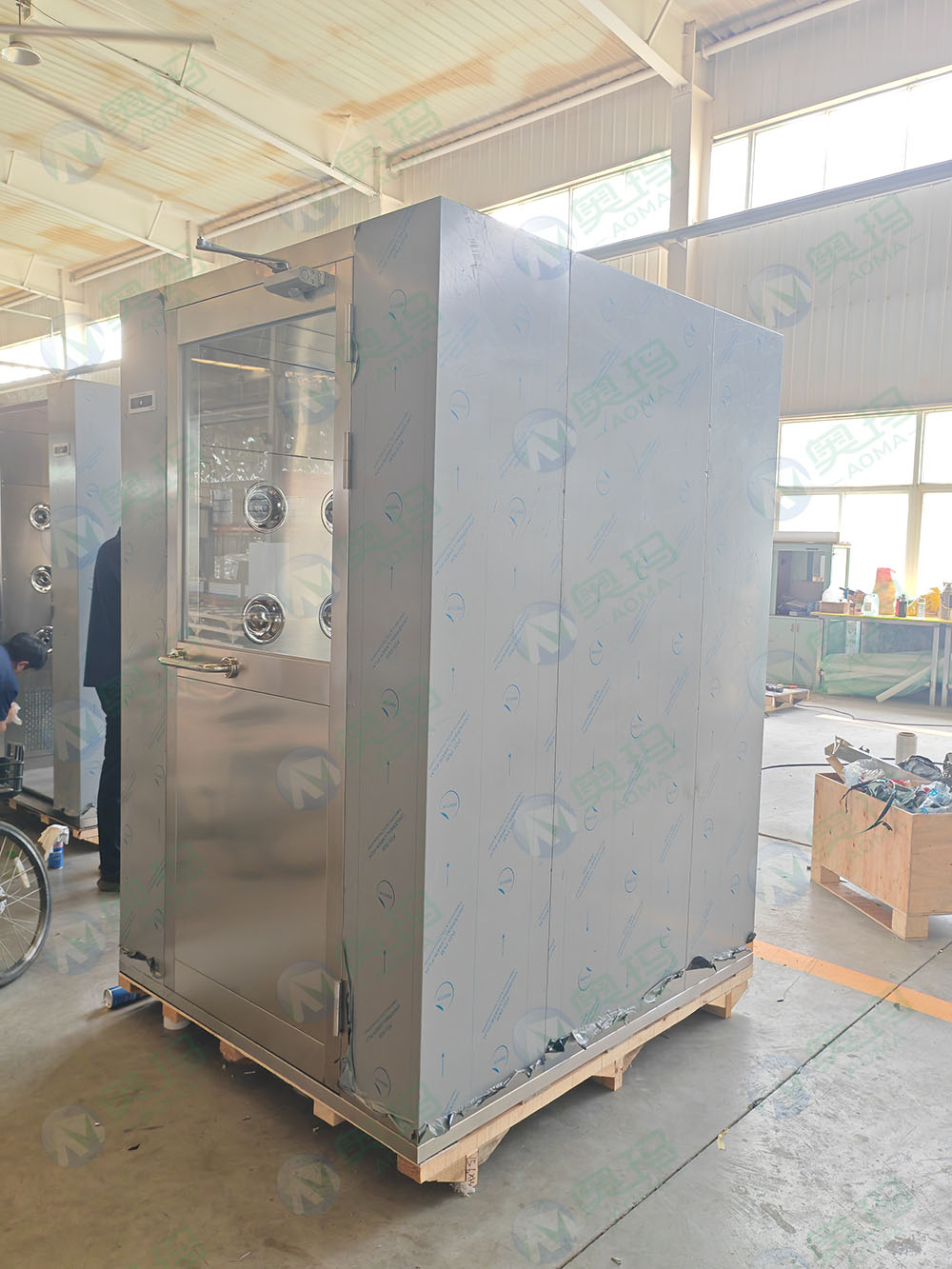

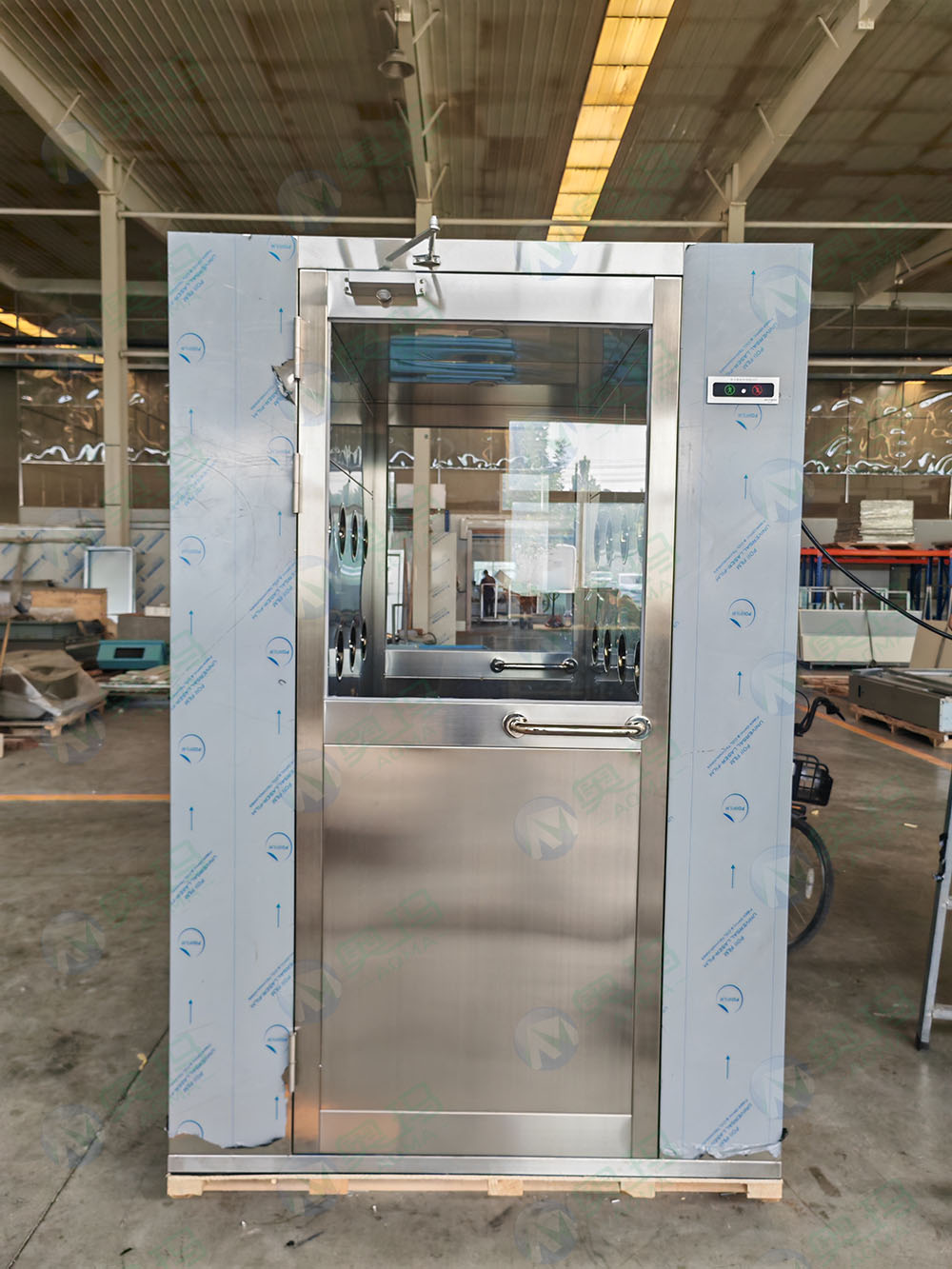

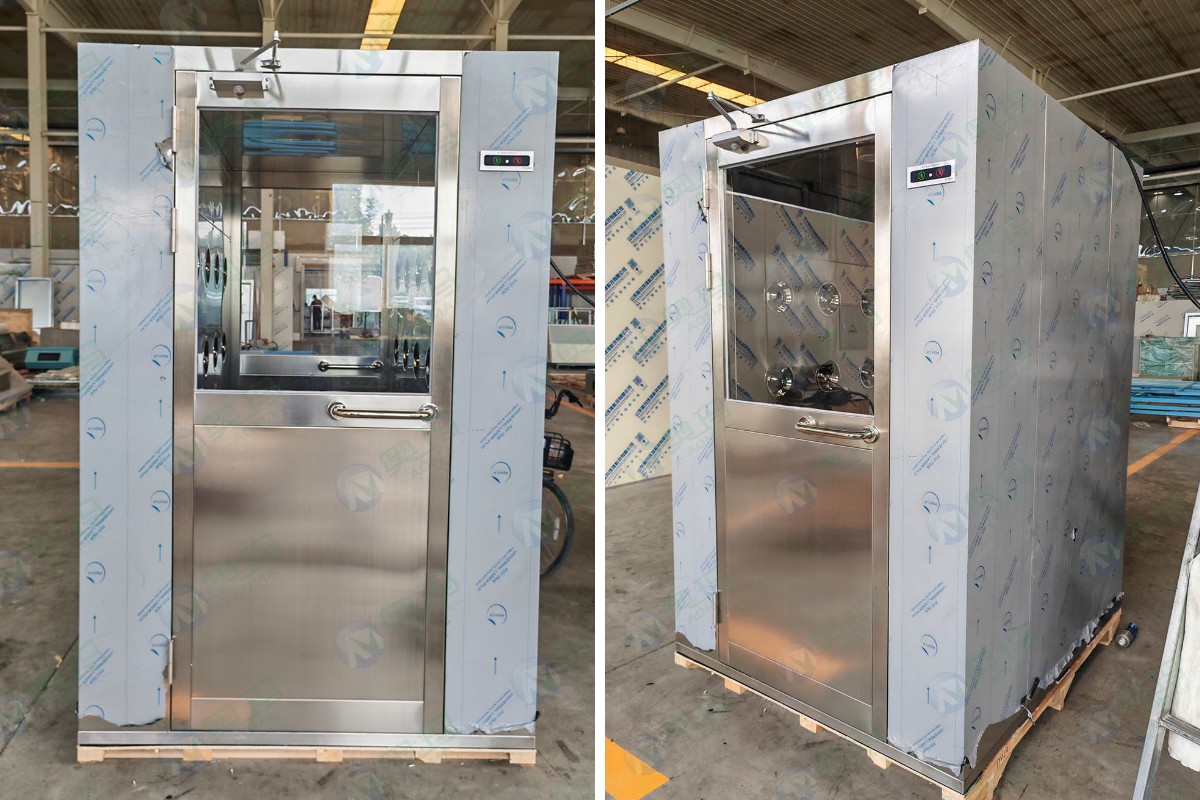

Double Shower with Dual Air Flow
Increased flow capacity with a two-person air shower for cleanroom entry
Reduces particulate contamination to ensure a sterile working environment
Complies with hospital hygiene and air purification standards
Custom made to meet specific spatial and functional requirements
Provides durability, low maintenance costs and stable operation
The product description
A double air gateway is a specially designed entry system into clean rooms used to effectively remove particles from the surface of the staff before entering controlled areas. It is widely used in hospitals, in electronic industries, pharmaceutical plants and laboratories of the GMP standard, helping to maintain cleanliness in high -class environments. As a key component of any entry system into the clean rooms of Hospital Cleanroom Entry System, an air gateway prevents cross -pollution and guarantees compliance with hygiene norms.
This block is designed for simultaneous use by two people, increasing the throughput while maintaining strict control of pollution. For sterile input air gateways for the Sterile Entry Air Shower for Labs laboratories, this model provides a smooth, free from particles, the transition from the dirty zone to clean.
Key Features

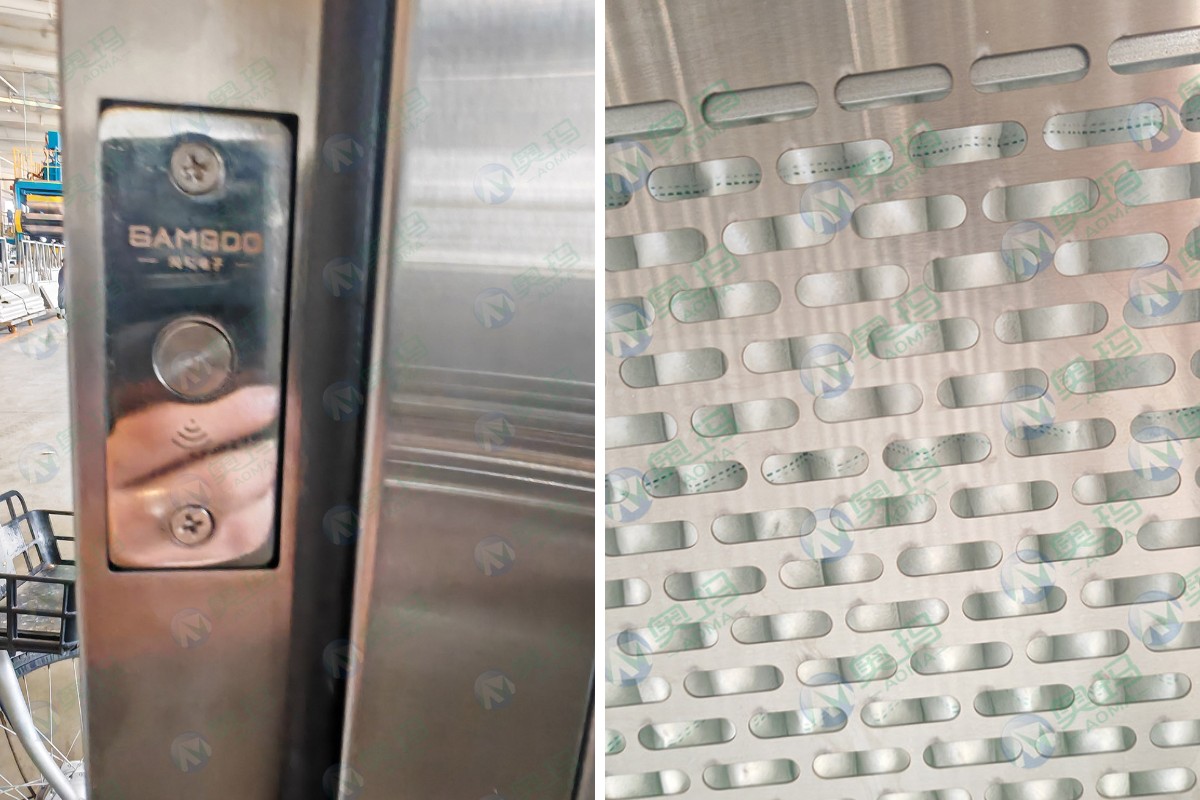

Fully automatic operation with electronic locking control system
Made of high quality stainless steel
Equipped with high-efficiency HEPA filters to remove particles ≥99.99% at 0.5 µm
Adaptation to explosion protection requirements is possible (upon request)
Optional three-door design for 90-degree entry/exit path (must be specified when ordering)

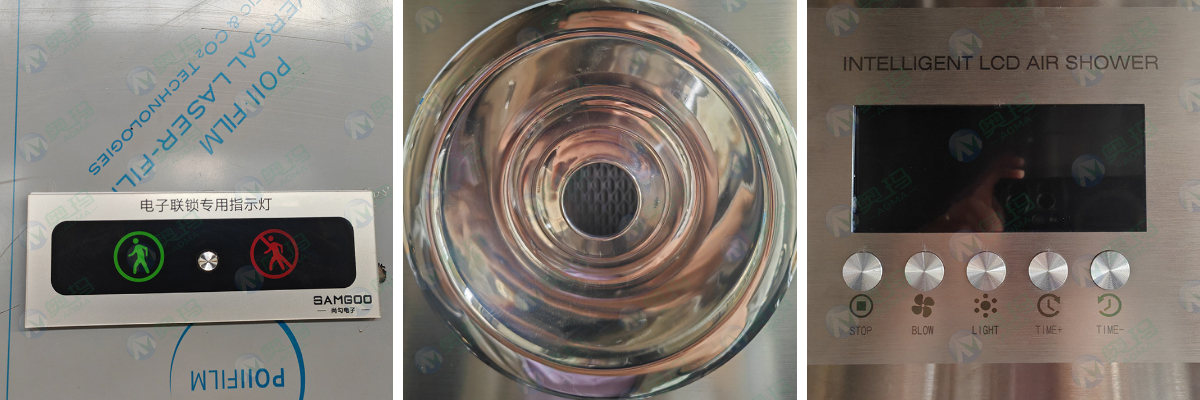

Built-in LED lighting and timed air shower cycles
High-speed air flow of 20-28 m/s for effective disinfection
Technical Parameters
| Position | Characteristics |
| Model | FLS-2Type C (customizable) |
| Overall dimensions (mm) | 1550 × 1700 × 2050 |
| Internal dimensions (mm) | 750 × 1600 × 1950 |
| Processing time | Adjustable (0-99 seconds) |
| Number of nozzles | 24 (stainless steel, both sides) |
| Air flow speed | 20-28 m/s |
| HEPA filter efficiency | 99.99%@0.5μm |
| Nutrition | AC 380 V, 50 Hz |
| Control system | Electronic locking controller |
| Material | SUS304/201 to choose from |
| Door configuration | Double door / 3-section (90° optional) |
Advantages
Increased flow capacity with a two-person air shower for cleanroom entry
Reduces particulate contamination to ensure a sterile working environment
Complies with hospital hygiene and air purification standards
Custom made to meet specific spatial and functional requirements
Provides durability, low maintenance costs and stable operation
Additional services
Individual technical consultations before purchase
Development of custom solutions for special door orientations or explosion-proof configurations
Video presentations and virtual tours of the production facility upon request
Installation support and remote commissioning via video
Production process
Preparation of raw materials (SUS304 or SUS201)
Cutting, bending and welding of sheet metal
Assembly of HEPA filters and integration of the control system
Dust sealing and assembly of modular blocks
Performance tests (air speed, nozzle angle, tightness)
Final control and packaging
Quality provision standards
Compliance with the requirements of clean rooms
Product testing before shipping
The configuration includes a HEPA-filtration system for clean rooms
The advantages of the company
Being a reliable manufacturer in the field of clean rooms, we specialize in the design and production of modular cleaning systems, air locks and cleaning equipment for medical, electronic, chemical and food industries. Thanks to our own production base, the experimental team of engineers and a strict quality control system, we offer individual solutions that meet the highest standards.
Product video available upon request
We offer high-definition product videos, demonstrations, and 360° tours for better understanding before ordering.
