Mineral Wool Sandwich Panel
?Excellent fire resistance
Stone wool does not support combustion and is suitable for fire-resistant areas.
?Flexible configuration
The possibility of manual assembly allows the panels to be adapted to non-standard shapes, openings, and built-in elements.
?Smooth and easy to clean surface
Suitable for sterile rooms and medical facilities.
?Increased tightness
Reliable sealing of seams and absence of gaps thanks to precise manual fitting.
?️Installation versatility
Suitable for walls, ceilings, partitions, technical shafts.
?Product description

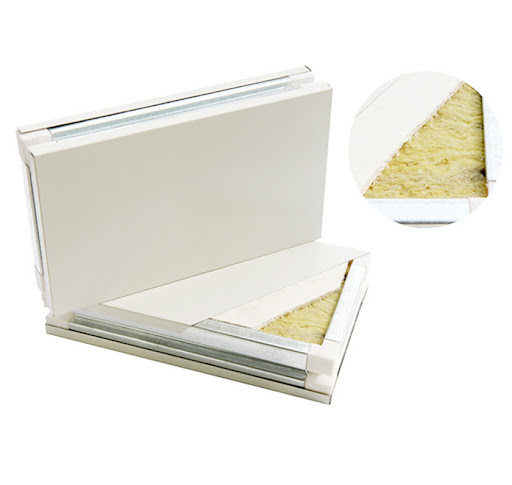

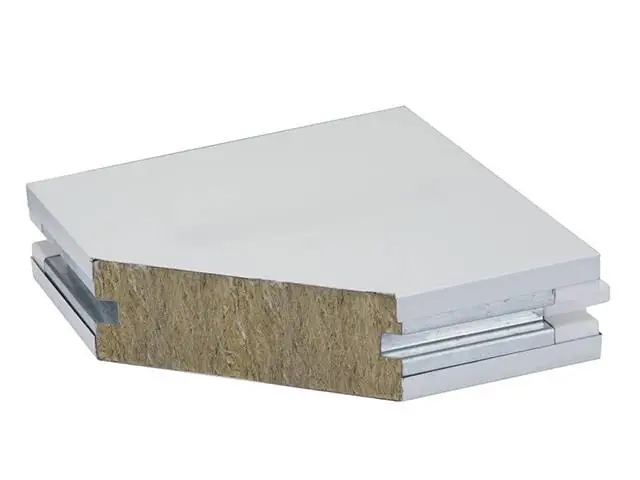

Hand-made sandwich panels with rock wool core are designed for rooms with high requirements for cleanliness, fire resistance and sound insulation. Hand assembly ensures high design accuracy, configuration flexibility and the possibility of individual project solutions. The panels are made of colored galvanized steel and non-combustible high-density rock wool.
Such panels are widely used in clean rooms, operating rooms, pharmaceutical laboratories and food production.
⚙️Specifications
| Indicator | Meaning |
|---|---|
| Panel type | Manual assembly |
| Outer layer | Colored galvanized steel |
| Steel thickness | 0.5 mm (on request 0.376–0.6 mm) |
| Internal filling | Stone wool |
| Density of insulation | 100–120 kg/m³ |
| Panel thickness | 50mm, 75mm, 100mm |
| Maximum length | Up to 6000 mm |
| Panel width | 980 mm / 1180 mm |
| Fire resistance | 1-3 hours |
| Thermal conductivity | ≤ 0.045 W/(m K) |
| Noise insulation | ≥ 32 dB |

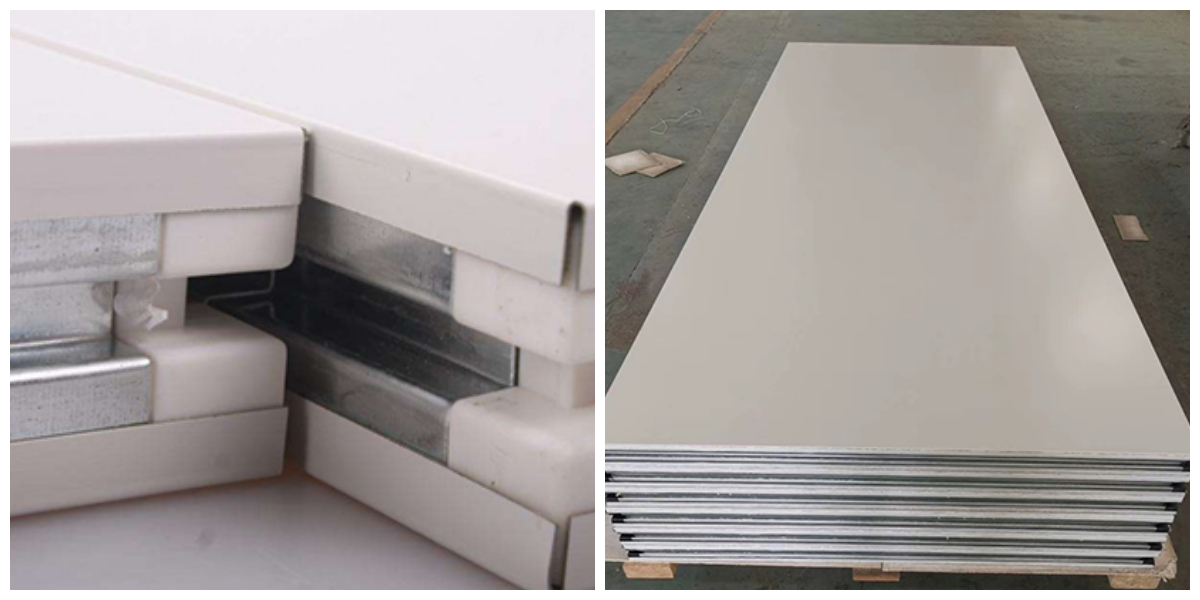

| Connection type | Straight edge, Z-lock, aluminum profile, etc. |
✅Product benefits
?Excellent fire resistance
Stone wool does not support combustion and is suitable for fire-resistant areas.?Flexible configuration
The possibility of manual assembly allows the panels to be adapted to non-standard shapes, openings, and built-in elements.?Smooth and easy to clean surface
Suitable for sterile rooms and medical facilities.?Increased tightness
Reliable sealing of seams and absence of gaps thanks to precise manual fitting.?️Installation versatility
Suitable for walls, ceilings, partitions, technical shafts.

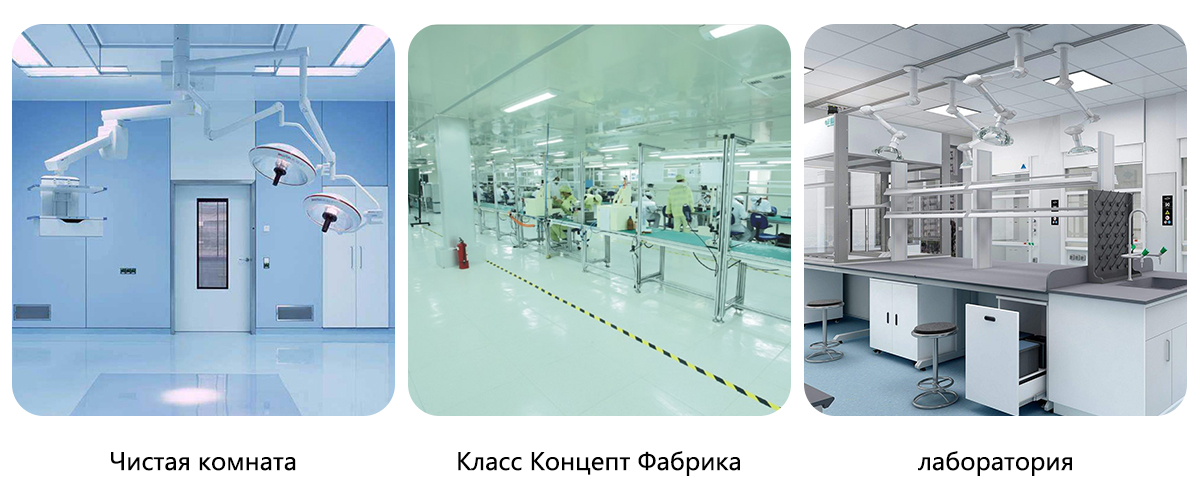

?Application
Clean rooms and sterile areas
Operating and medical laboratories
Pharmaceutical and biotechnological production
Electronic and food industry
Research institutions
Premises with increased requirements for noise and thermal insulation
![Mineral Wool Sandwich Panel]( "Mineral Wool Sandwich Panel")
?Additional options
Antibacterial paint options
Protective PE film for transportation
Perforated panels (on request)
Integration with cable channels, windows, air ducts
