Hand-assembled – Fiberglass-magnesium-aluminum honeycomb panels for clean rooms
High strength, lightweight construction:
The aluminum honeycomb core provides superior structural strength and stability. The panel is lightweight, making it easy to transport and install.
Fire resistance time:
1-3 hours.
Excellent heat and sound insulation:
The honeycomb structure effectively reduces thermal conductivity and sound transmission, improving indoor comfort.
Smooth, durable and aesthetic surface:
The panel surface is smooth, ideal for clean rooms. The colored steel surface is resistant to corrosion, rust and is additionally treated to protect against electrostatic discharge.
Eco-friendly and reusable:
The main material is environmentally friendly and non-toxic. The panels are removable and reusable, reducing long-term maintenance costs.
Customizable multifunctionality:
Custom thicknesses, colours and materials are available. Panels can also integrate doors, windows, electrical conduits and built-in components.
1. Implementation of the product

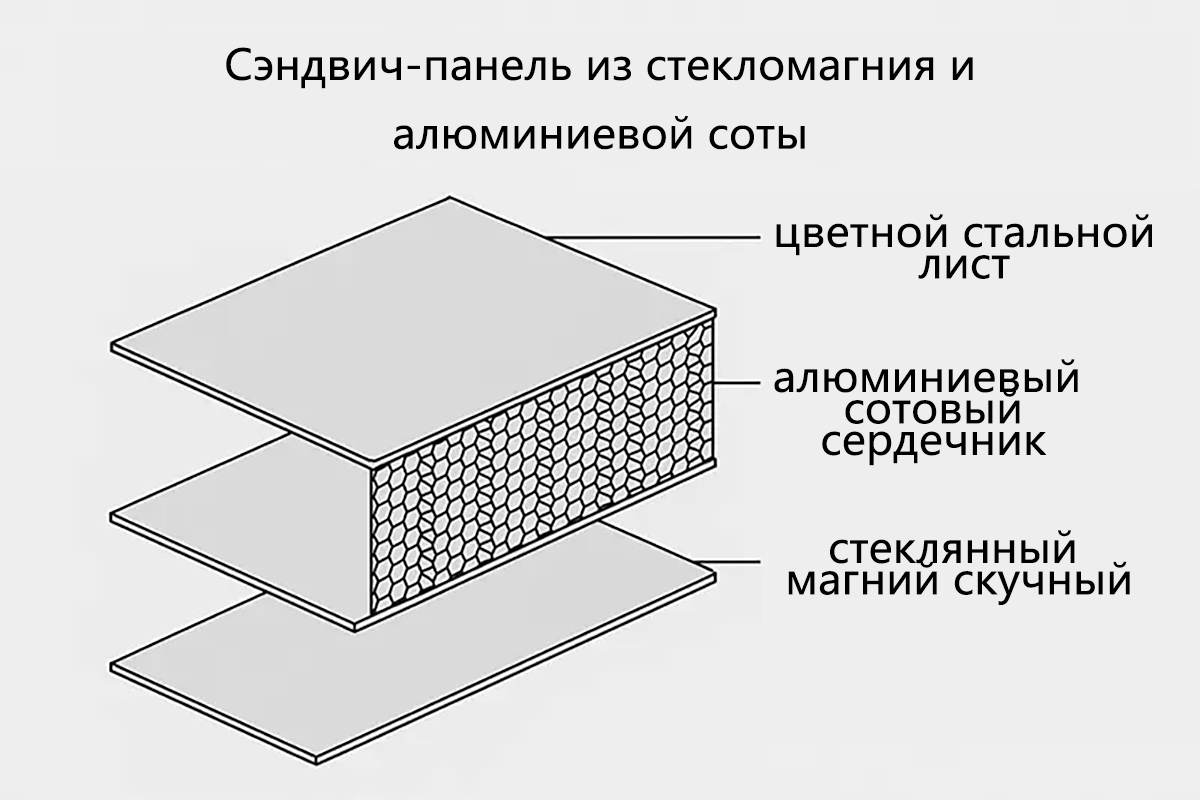

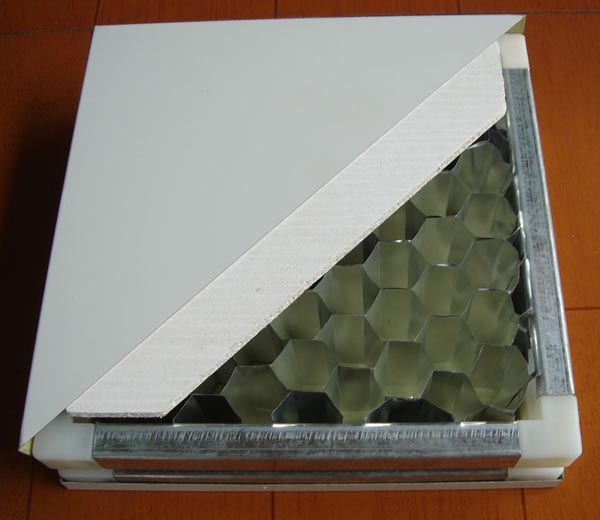

Handmade Glass Magnevo -Aluminum Cellular Panel of Steel is a high -performance composite panel. Yaro consists of aluminum cell material, and both sides are covered with steel plates (usually galvanized or stainless). The base layer is made of glass magnesium cardboard or layer of glass magnesium composite, and this is manual work. This product is suitable for the product. walls, ceilings or partitions in clean rooms.
2. Technical parameters
| Paragraph | Parameter |
Surface panel |
Color steel plate (thickness 0.376mm - 0.6mm), optionally stainless steel |
The material of the core |
Aluminum cell core + glass magnesium plate |
The thickness of the nucleus |
Conventional thicknesses: 50 mm, 75 mm, 100 mm, 150 mm |
Panel coating |
Polyester (PE), polyvilidenfluoride (PVDF), etc. |
Fire resistance time |
1-3 hours |
Thermal conductivity |
≤ 0.045 W/m K (depending on core material) |
Surface flatness |
High, the panel surface is not prone to deformation |
Custom sizes |
Customisable, typical width 980mm or 1180mm |
Sealing |
Can be paired with integrated aluminum profiles for superior sealing |
Installation |
Modular assembly, hand cut, removable |

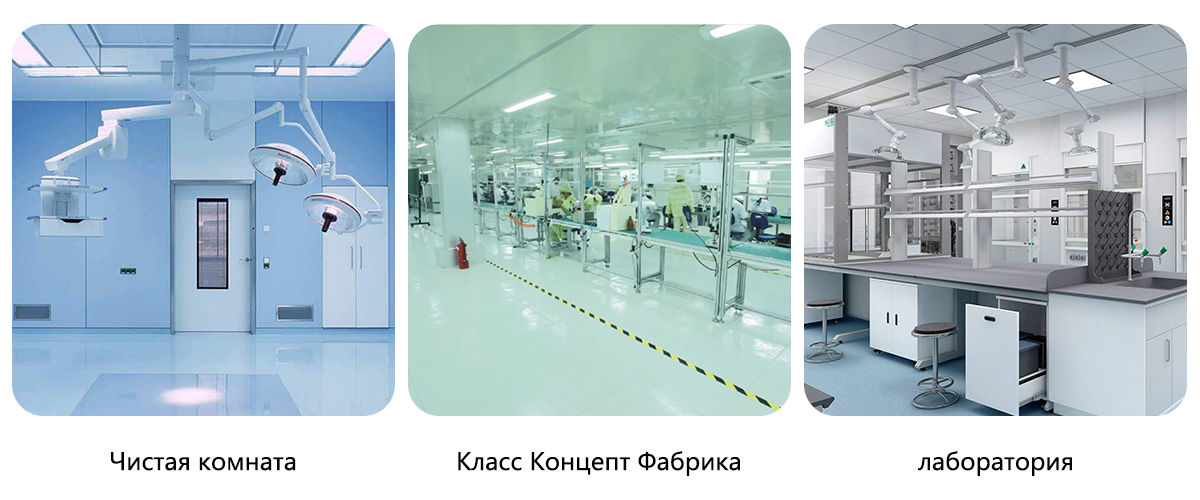

3. Application scenarios
Hospital clean operating rooms
Walls and ceilings of the laboratory
Dust-free electronics workshops
Cleanrooms for food and pharmaceuticals
Aerospace Clean Assembly Facilities
