Automatic Door Orit
Hygienic and easy to clean:
Smooth, seamless surfaces without gaps; compatible with medical disinfectants.
Quiet operation:
The silent motor system is ideal for ICU and ward environments.
Contactless access:

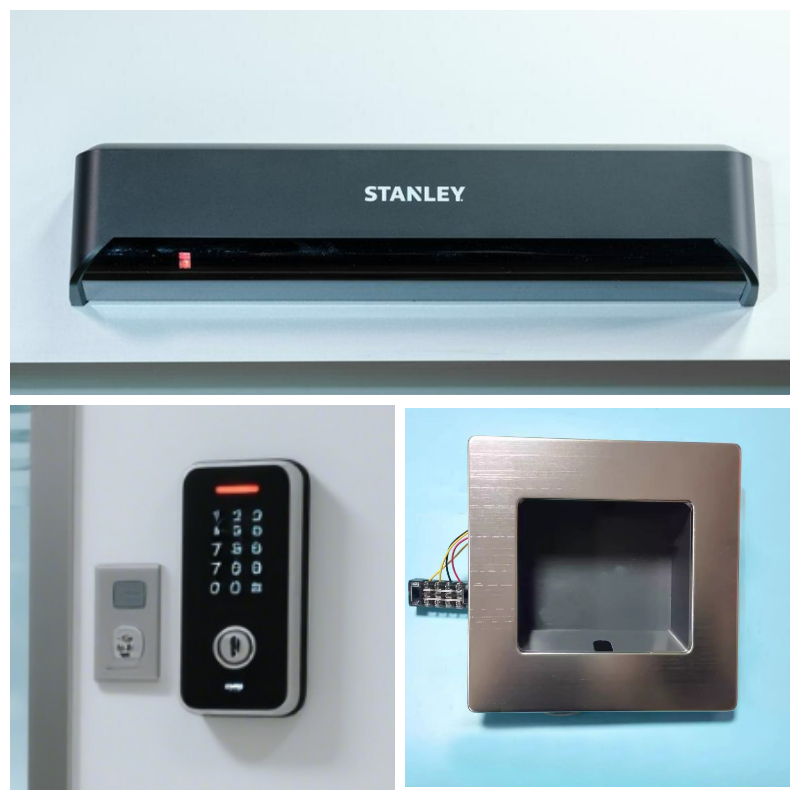

Fully automatic operation with motion sensors or individual access control systems.
Improved patient safety:
Anti-pinch function and safety sensors to prevent injuries.
Hermetic seal:
Protects against dust, bacteria and maintains control of the internal environment.
Modularity and ease of installation:
Quick installation with plug-and-play control system.
Customizable design:
Available in a variety of colours, panel types and glazing options.
The product description

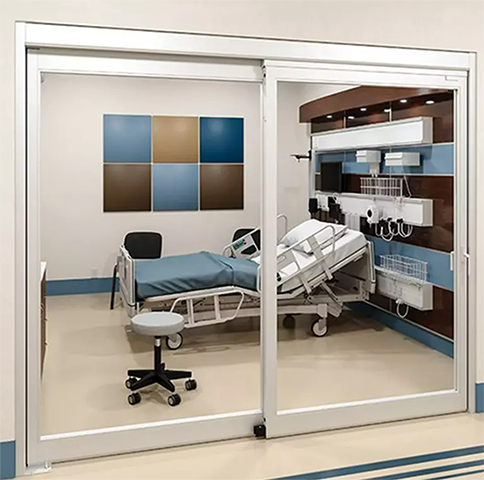

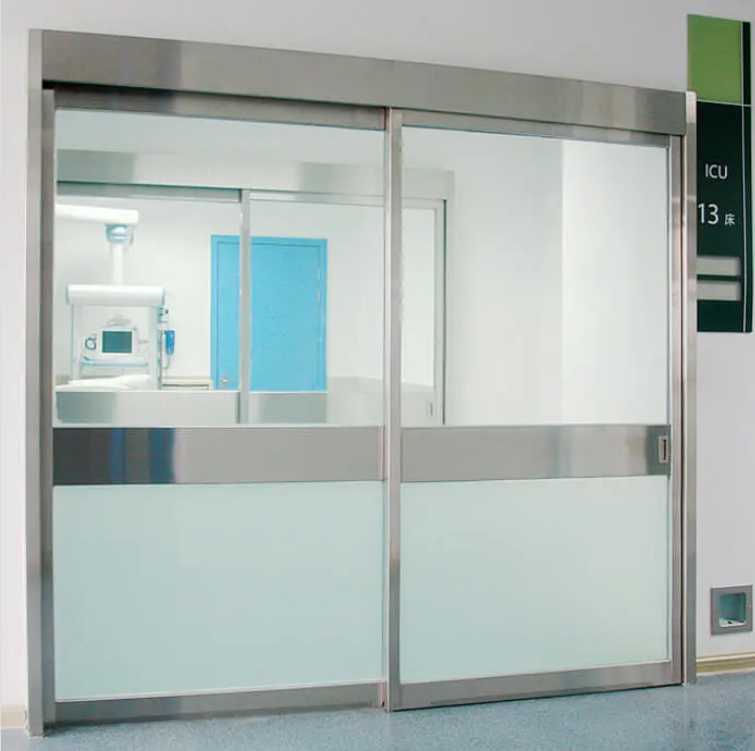

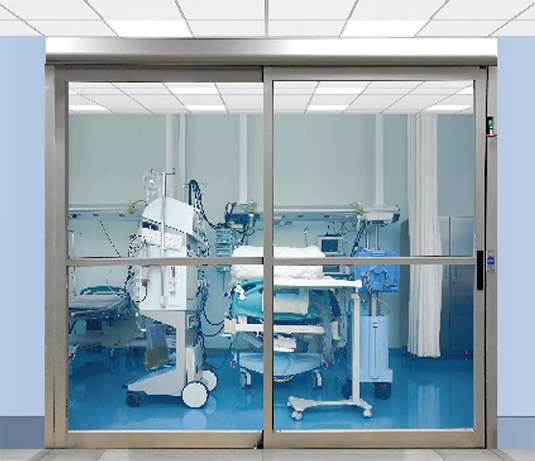

The automatic sliding door for ORIT is specially designed for intensive care units (ith), resuscitation and operating zones, where high hygiene standards, silent work and effective access control are required. The door system created using advanced medical technologies provides smooth contactless access for medical personnel, while guaranteeing tightness and maximum safety in critical medical premises.

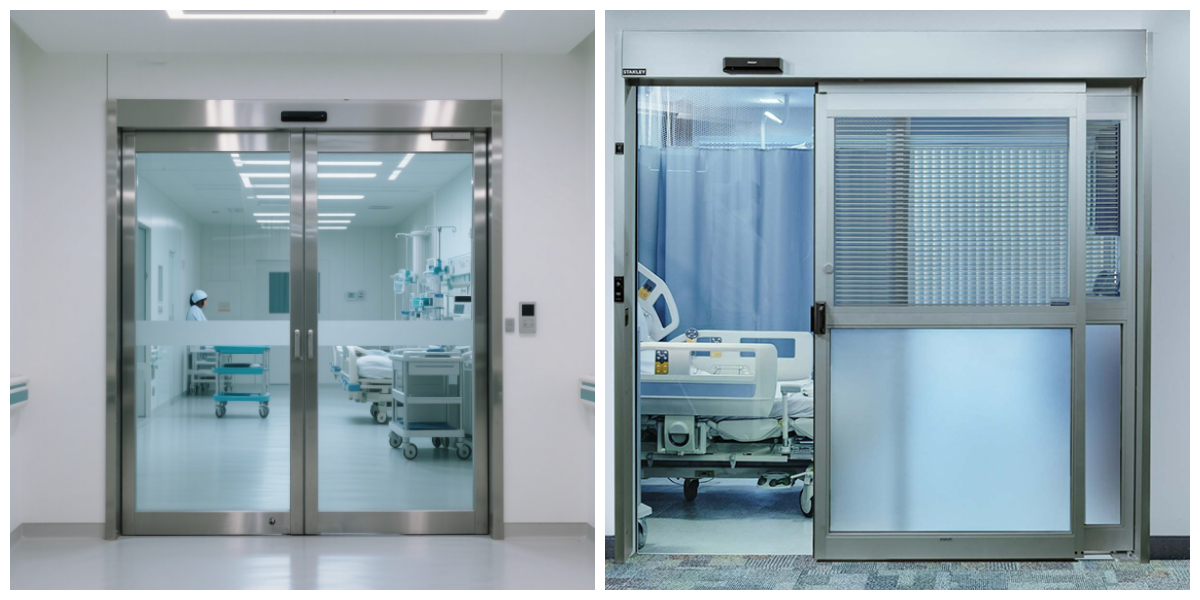

The door is available in single or double leaf versions and can be integrated with proximity sensors, foot switches or hospital bed detectors for fully automated operation. Constructed from aluminum alloy with options of tempered glass or solid panels, it combines durability, ease of maintenance and a sleek, modern appearance.
Specifications
| Parameter | Characteristics |
| Door type | Automatic sliding door |
| Opening type | One / Two canvases |
| Material panels | Tempered glass / Steel panel with polyurethane foam core |
| Frame material | Anodized aluminum alloy |
| Door thickness | 40 – 60 mm |
| Width of the light opening | 1,070 – 1,570 mm (possibility of individual configuration) |
| Height of the light opening | 2 100 mm (standard) / custom configuration possible |
| Control method | Automatic sensor / Elbow switch / Foot switch |
| Motor system | Low noise brushless DC motor |
| Control system | Microprocessor control with safety sensors |
| Nutrition | AC 110–240 V, 50/60 Hz |
| Opening speed | 300–500 mm/s (adjustable) |
| Sealing | Rubber seal for sealing |
| Backup power | Optional UPS system |
| Additional options | Electromagnetic lock/Battery backup/Lock |
Key Features and Benefits
Hygienic and easy to clean:
Smooth, seamless surfaces without gaps; compatible with medical disinfectants.
Quiet operation:
The silent motor system is ideal for ICU and ward environments.
Contactless access:
Fully automatic operation with motion sensors or individual access control systems.
Improved patient safety:
Anti-pinch function and safety sensors to prevent injuries.
Hermetic seal:
Protects against dust, bacteria and maintains control of the internal environment.
Modularity and ease of installation:
Quick installation with plug-and-play control system.
Customizable design:
Available in a variety of colours, panel types and glazing options.
Applications
Intensive care units (ICU)
Admissions departments (AD)
Operating rooms
Isolation wards
Hospital corridors
Clean medical rooms
Recovery chambers
Maternity and neonatal departments
