Metal Laminated Panel
?️ Anti-corrosion and antibacterial protection
? High fire resistance and thermal insulation
? Smooth surface, resistant to chemicals and easy to clean
? High strength and dimensional stability
?️ Easy and quick installation with a locking system
? Aesthetic appearance - suitable for sterile environments
? Environmentally friendly, does not emit toxic substances
? Product description

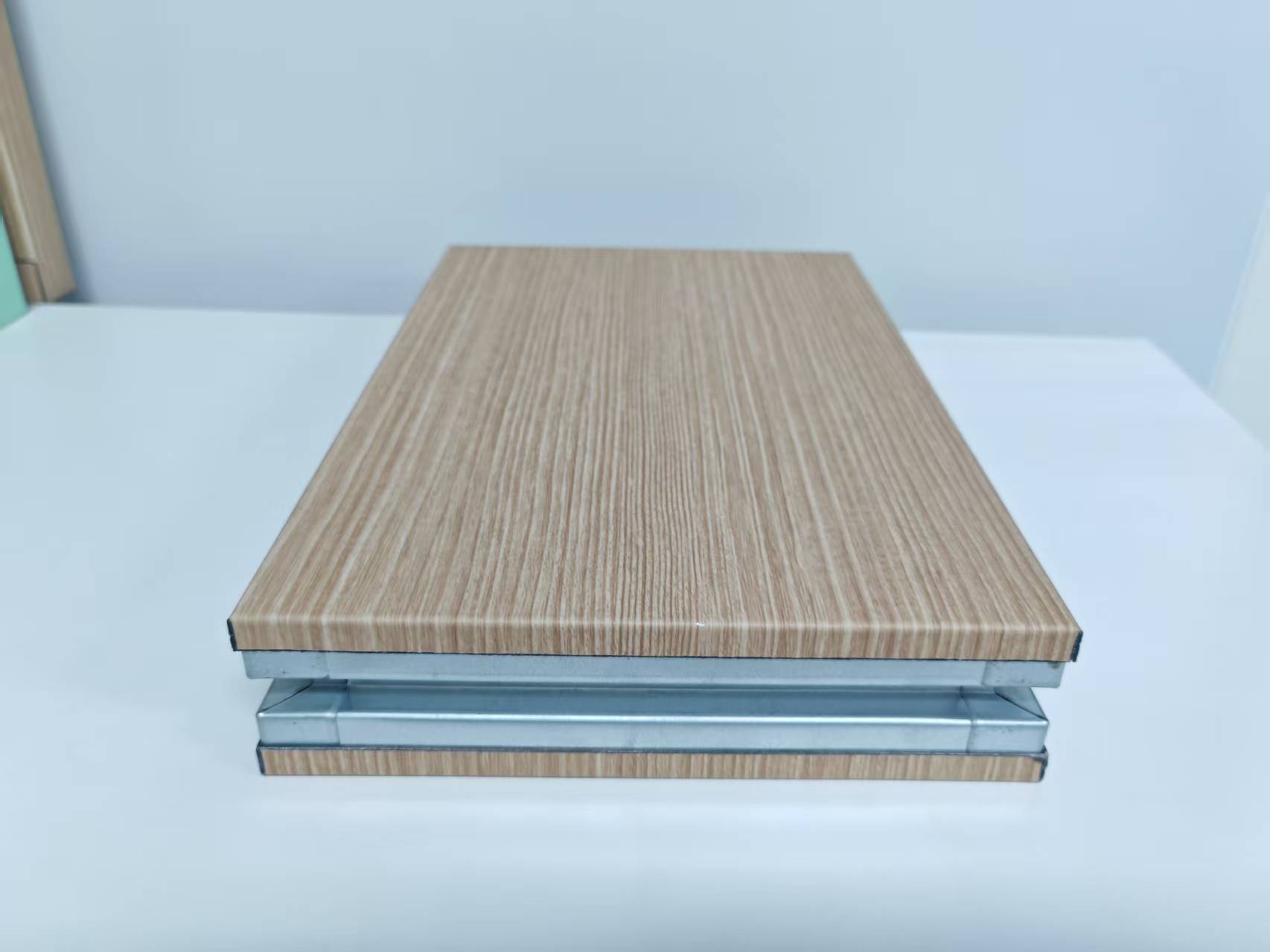

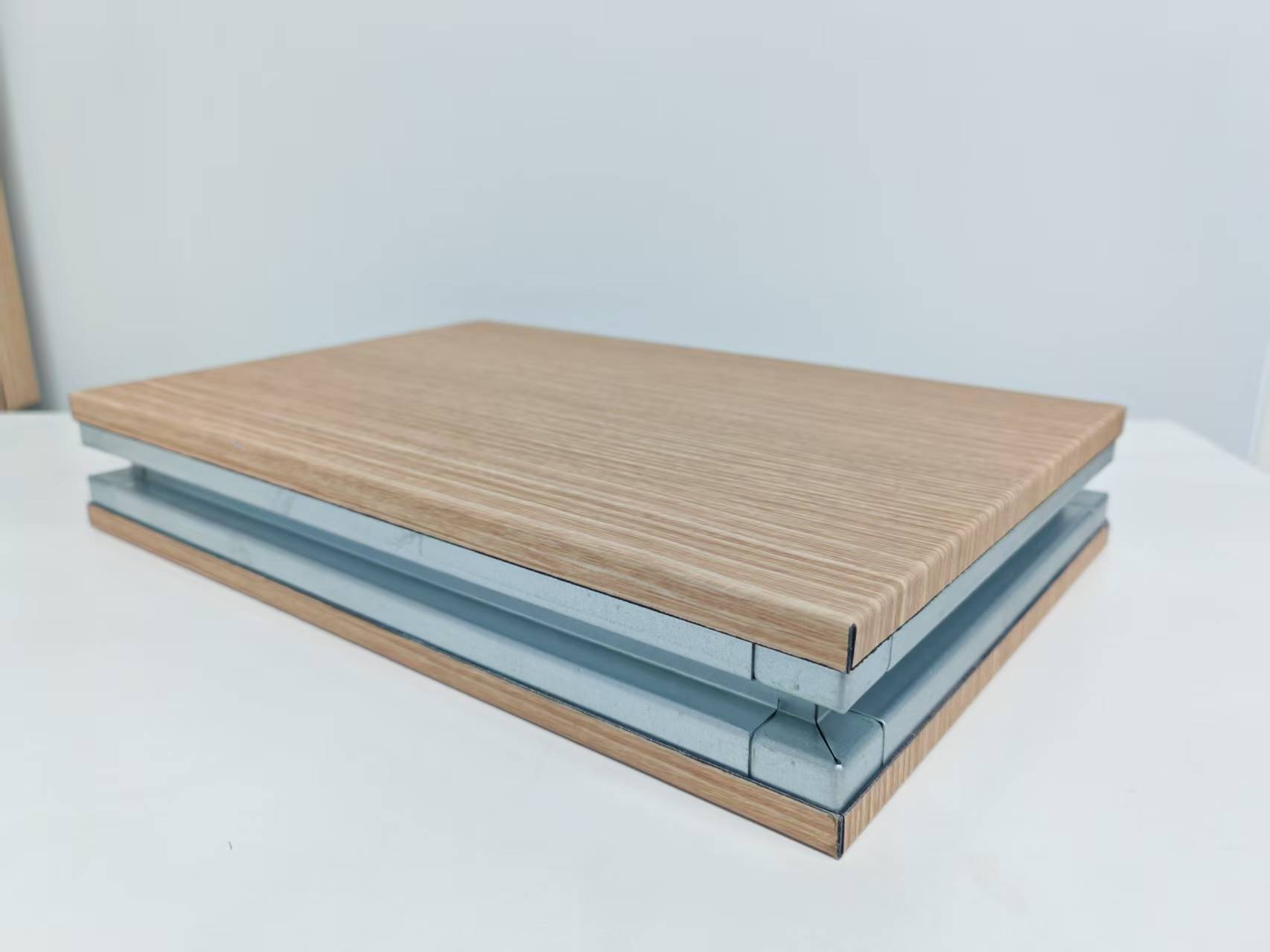

Laminated sandwich panel with colored steel cladding and external protective film is
highly functional building material intended for premises with high sanitary requirements
and fire safety requirements. The panel consists of two steel sheets, pre-painted and
lamination, between which there is a thermal insulation core (for example, mineral wool,
polystyrene foam, PIR, etc.).
? Product details
Facing layer: Colored galvanized steel with PVC
Insulation core: Mineral wool, polyurethane foam (PU), expanded polystyrene (EPS), Glass-magnesium sheet with
Rock wool, Aluminum honeycomb structure and so on.
Film type: Smooth, matte, glossy, antibacterial
Connection type: Concealed locking connection for tightness
Standard colors: White, light gray, green (RAL 9002, 9016, etc.)
⚙️ Technical characteristics
| Parameter | Meaning |
|---|---|
| Panel thickness | 50-100 mm |
| Steel thickness | 0.426–0.6 mm (each side) |
| Film type | PVC, PET, PVDF |
| Panel width | 980 mm / 1180 mm |
| Panel length | Up to 6000 mm (on request) |
| Fire resistance | 1-3 Hours |
| Thermal conductivity | 0.035–0.045 W/(m K) |
| Sound absorption | ≥ 30 dB |
| Density of insulation | 100–140 kg/m³ (for stone wool) |
✅ Product advantages
?️ Anti-corrosion and antibacterial protection
? High fire resistance and thermal insulation
? Smooth surface, resistant to chemicals and easy to clean
? High strength and dimensional stability
?️ Easy and quick installation with a locking system
? Aesthetic appearance - suitable for sterile environments
? Environmentally friendly, does not emit toxic substances

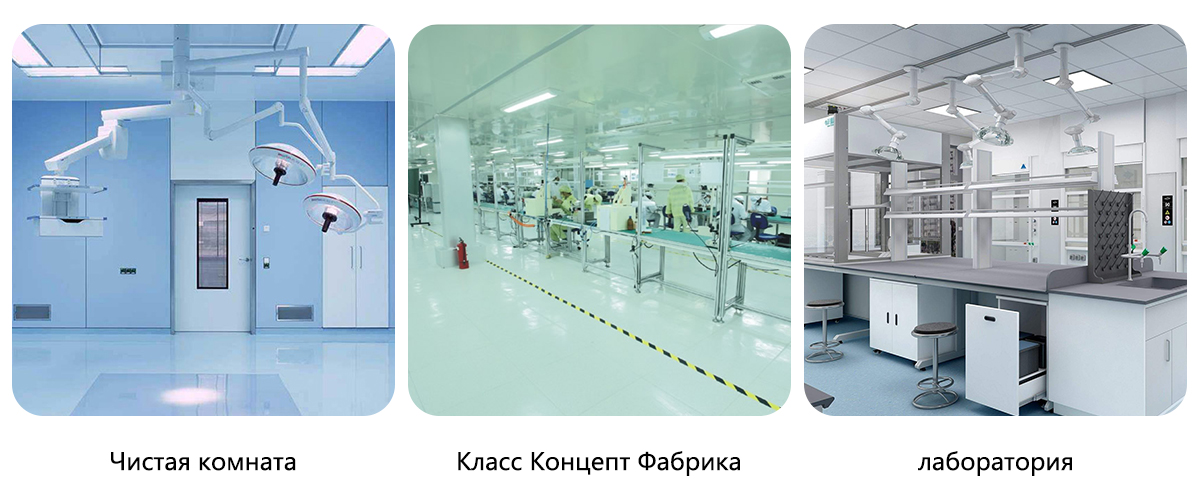

? Application areas
? Medical facilities - operating rooms, clean rooms, laboratories
? Pharmaceuticals and Biotechnology - Sterile Production Areas
? Scientific institutions - research laboratories
? Food industry - packaging areas, cold rooms
? Electronics and aerospace industry
? Clean rooms in production facilities of any ISO class
