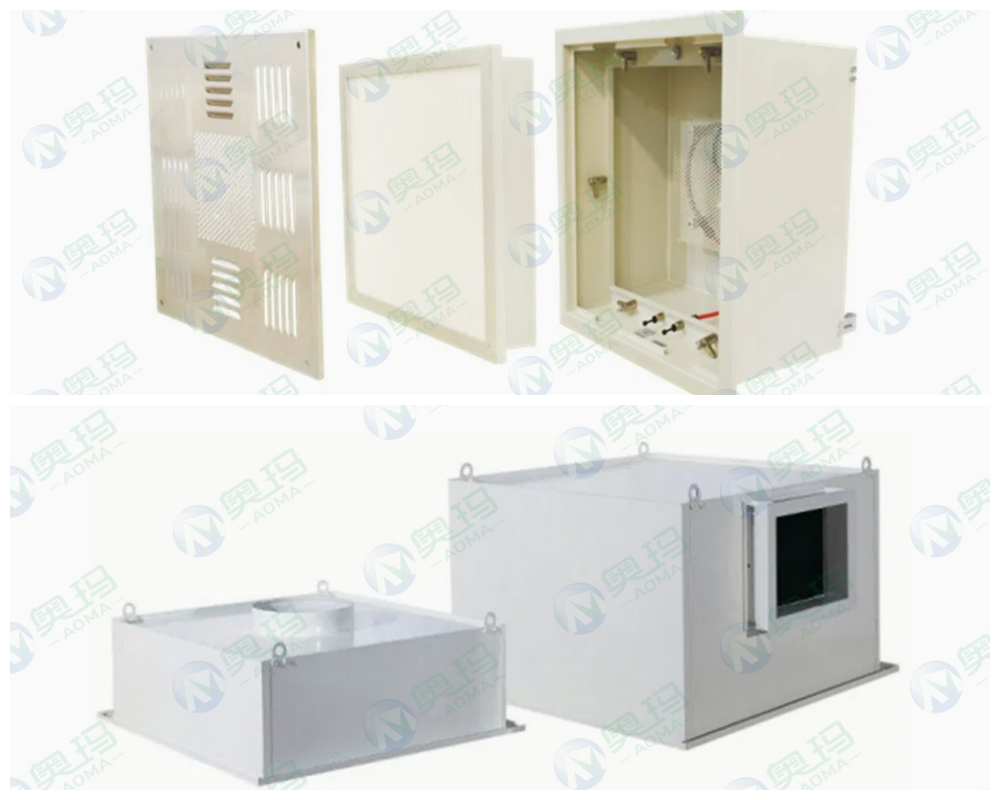

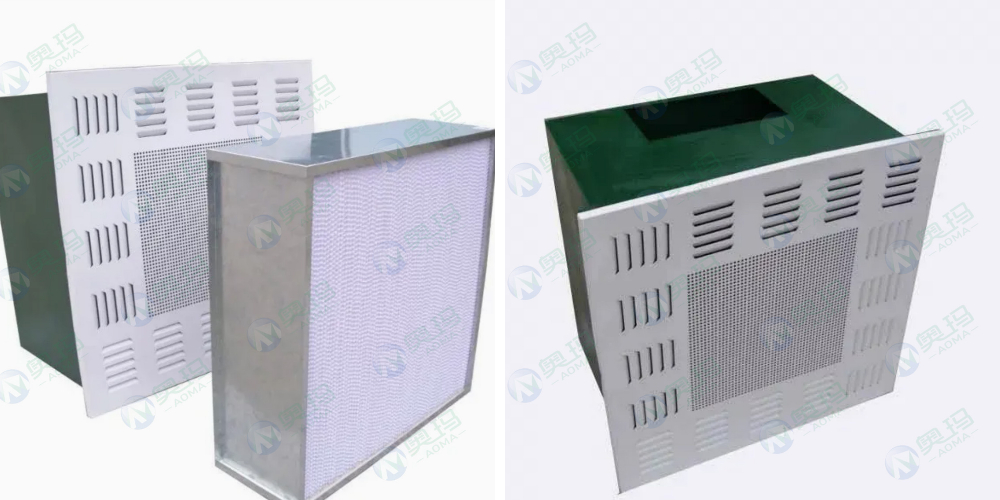

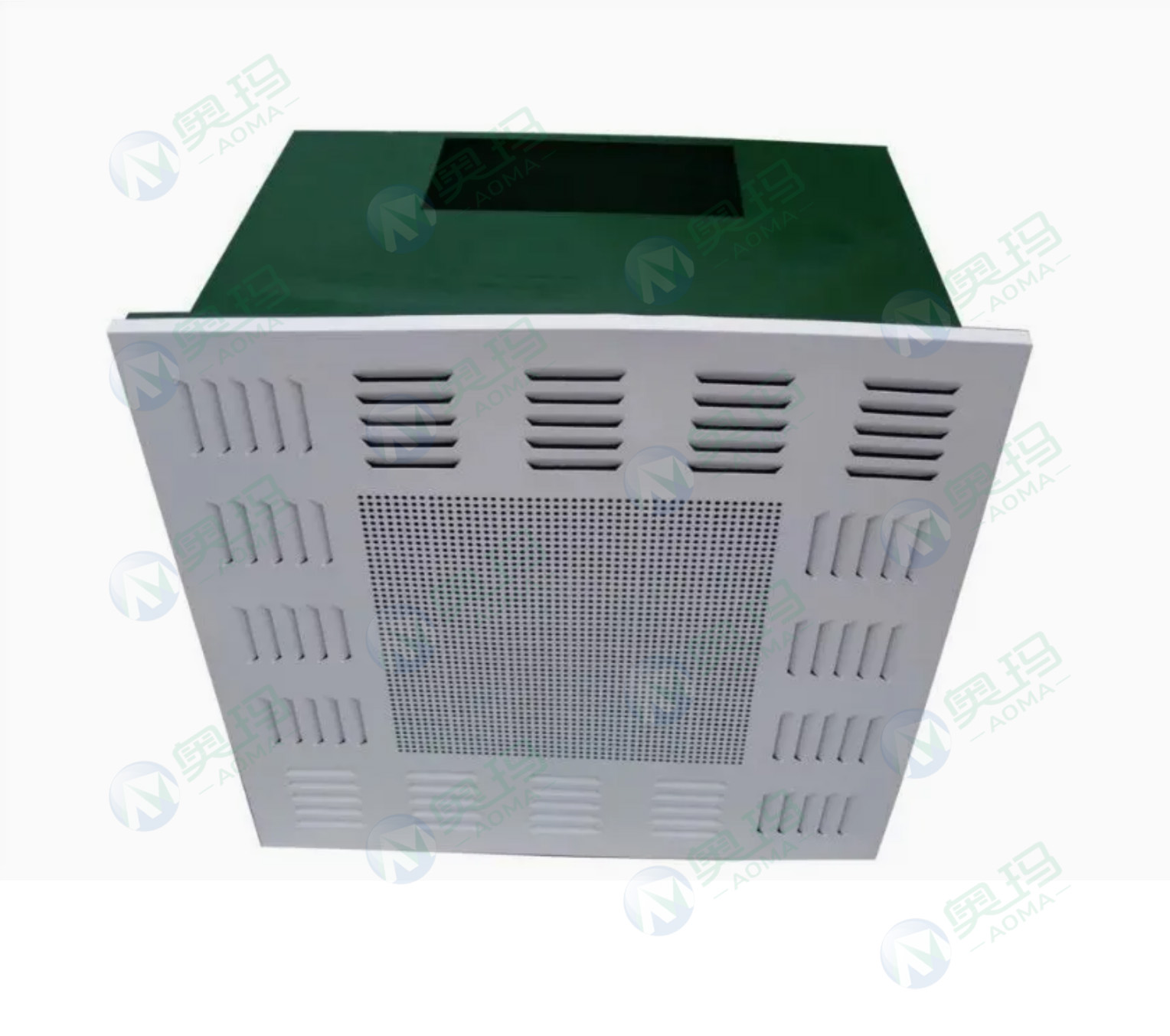

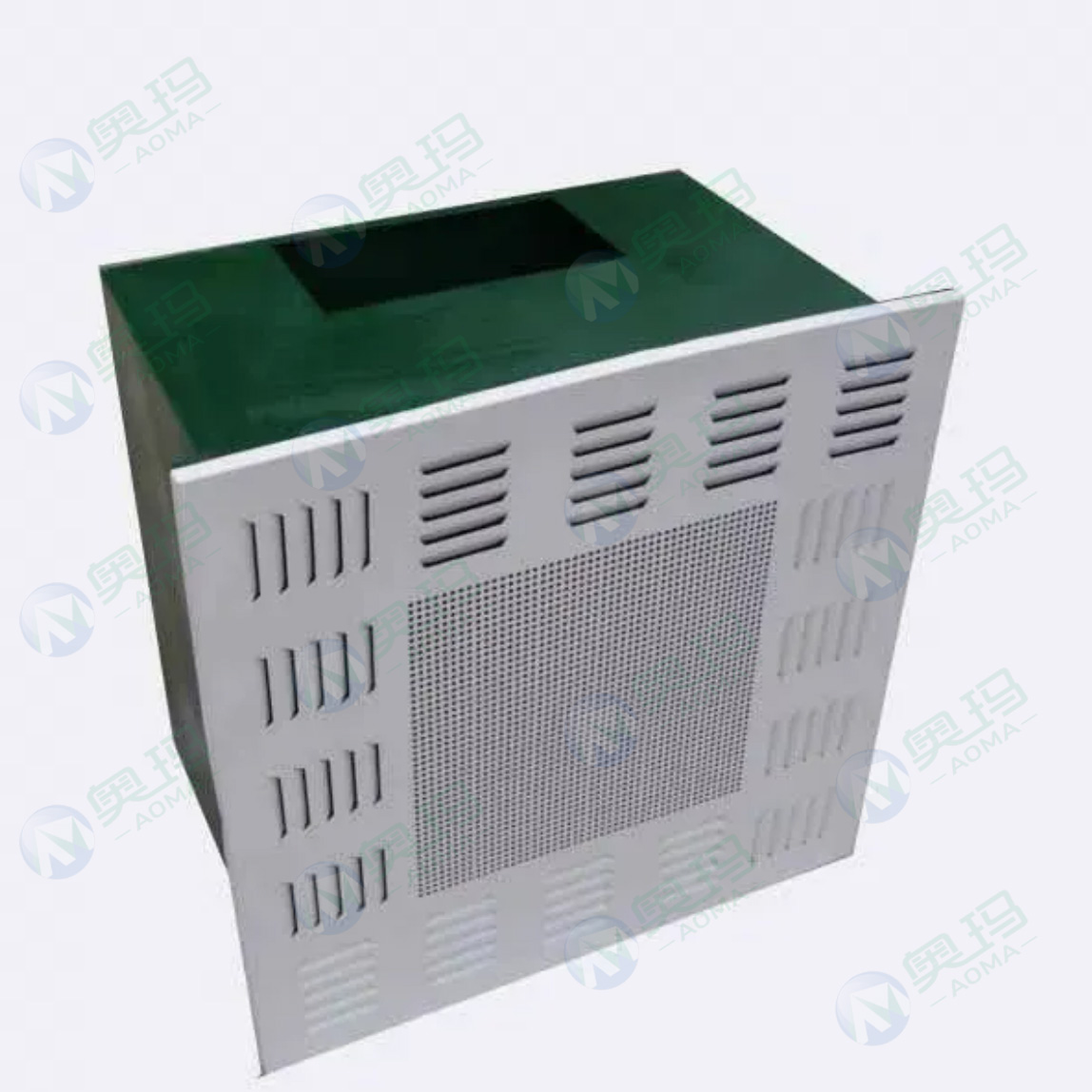

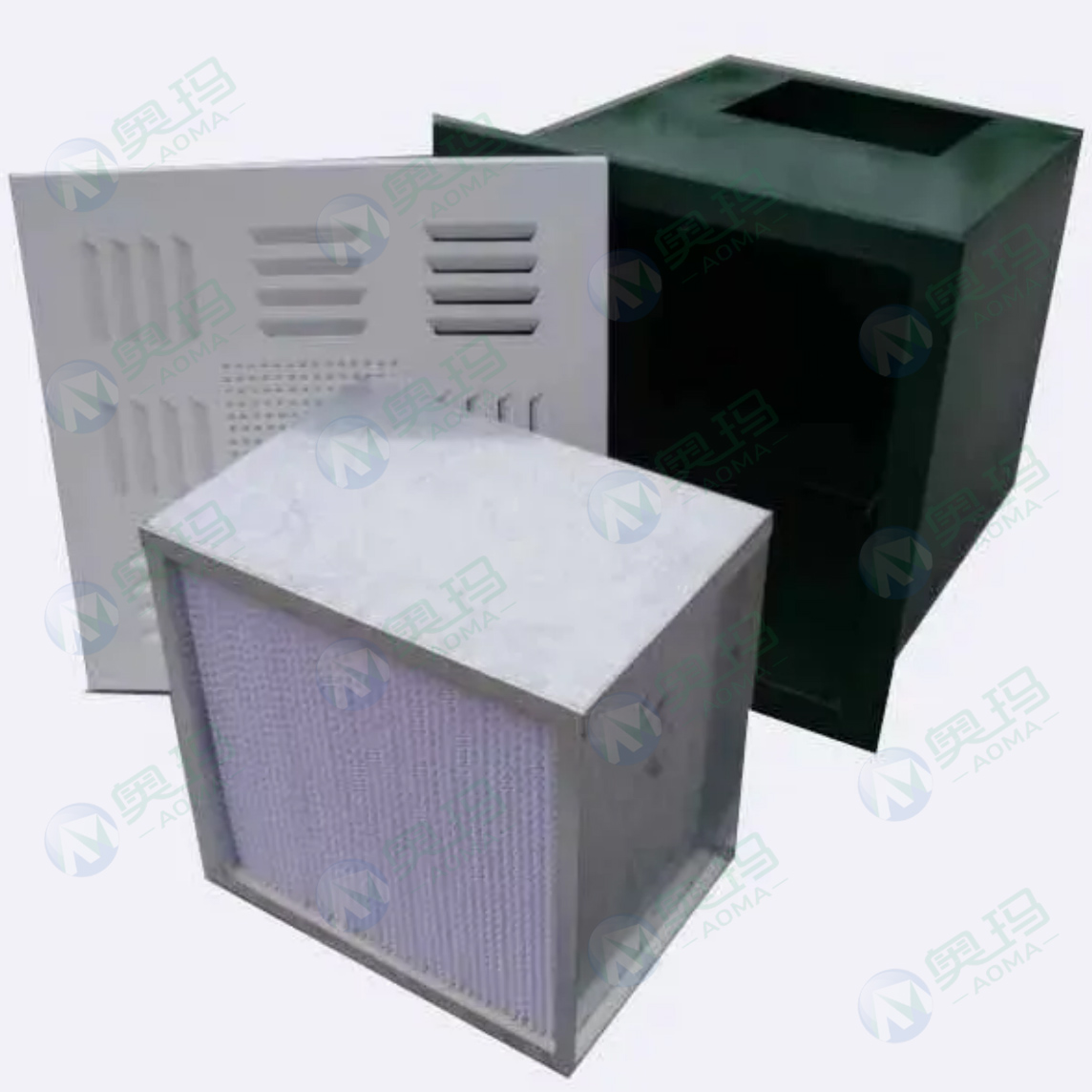

Ceiling ventilation valve with HEPA filter
Accurate airflow parameters for ISO-compliant sterile areas
Low resistance internal design for optimized energy efficiency

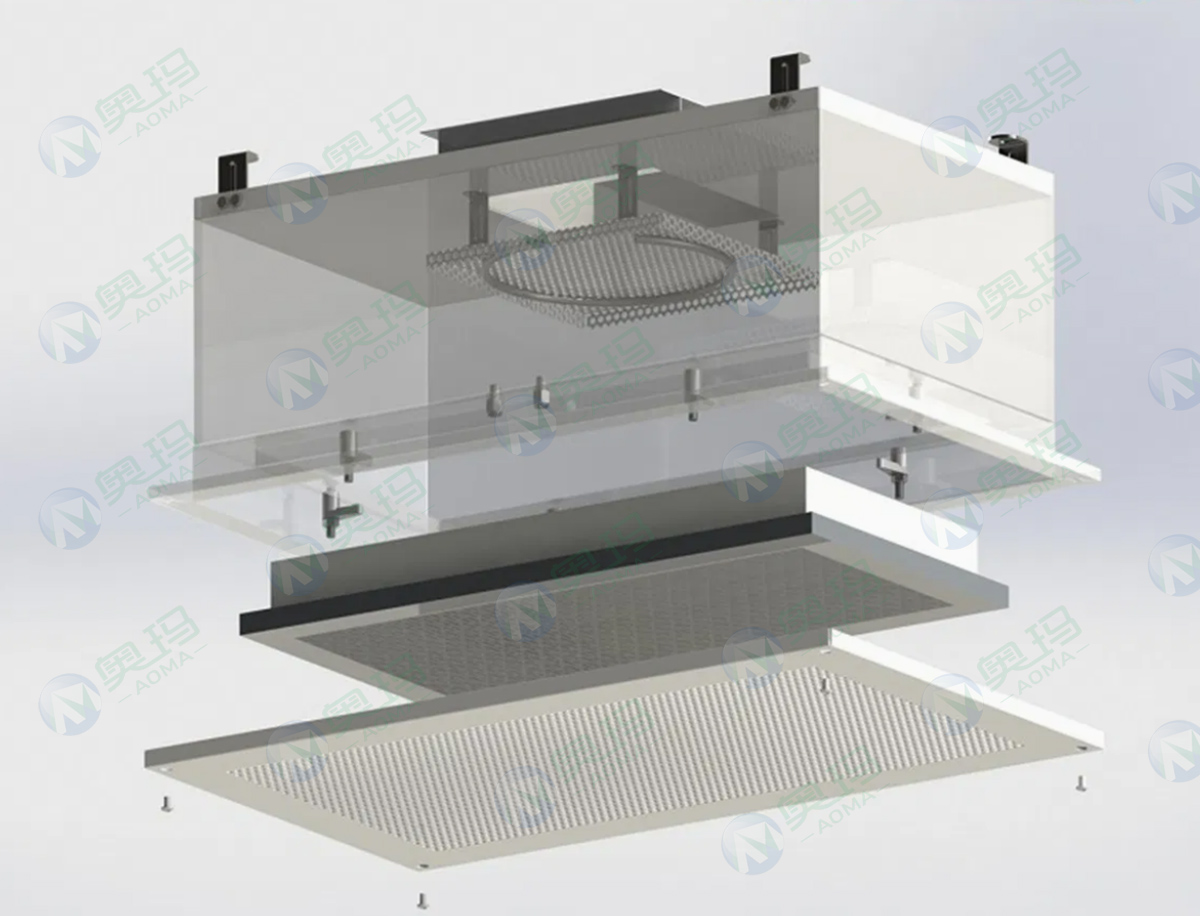

Modular assembly allows for quick installation and easy filter replacement
Durable, corrosion-resistant materials for long service life
The HEPA Filter Ceiling Vent is a high-efficiency air distribution device designed to deliver ultra-clean laminar airflow directly into controlled environments. This superior laminar flow unit with HEPA filter combines a precision engineered air chamber, built-in HEPA filter and perforated outlet panel to provide uniform, vortex-free air distribution in clean rooms.
Its ceiling mounting makes it an ideal space-saving solution for managing airflow in cleanrooms, cleanrooms and controlled production areas where particle control is critical.
Key Features
HEPA filter with efficiency ≥99.99% at 0.5 microns
Uniform laminar flow prevents air turbulence in critical areas
Integrated ceiling design for space saving and aesthetic appearance
Available in stainless steel (SUS304) or powder coated cold rolled steel
Compatible with gel seal or knife edge mounting systems
Optional anti-leak design and customized airflow settings
Scope of application
As a reliable Clean Room Ceiling Duct, this system is widely used in:
Sterile rooms of hospitals and medical centers
Pharmaceutical clean rooms
Biotechnology laboratories and research institutes
Food safety and packaging control lines
Production facilities of the semiconductor and microelectronics industry
Whether you're upgrading an existing airflow system or creating a new sterile environment, this Cleanroom Air Diffuser is designed to deliver high-clean air to sensitive areas.
Specifications
| Position | Details |
| Filter type | HEPA (≥99.99%) or ULPA (optional) |
| Material | SUS304 stainless steel / Powder coated galvanized steel |
| Filter Frame Options | Gel sealing / Knife sealing |
| Air volume | 500–1,200 m³/h (possibility of individual configuration) |
| Air flow speed | 0.45 m/s ±20 percent |
| Installation method | Recessed ceiling mounting |
| Additional options | Differential pressure port, DOP port |
Advantages
Accurate airflow parameters for ISO-compliant sterile areas
Low resistance internal design for optimized energy efficiency
Modular assembly allows for quick installation and easy filter replacement
Durable, corrosion-resistant materials for long service life
Customized solutions and service
Custom sizes and airflow configurations according to customer requirements
Test reports on request to verify airflow parameters and filtration performance
Product demonstration videos and installation guides are available.
Full technical support for design integration and modernization
Why choose us?
With over a decade of experience in cleanroom airflow design, we are a trusted supplier of ceiling-mounted HEPA systems for critical environments. From concept to delivery, our team ensures that every Laminar Flow HEPA unit meets global standards and exceeds customer expectations.
Contact us today
Looking for a reliable and efficient ceiling ventilation valve with a HEPA filter? Contact us now for a quote, technical specifications, or a personalized consultation on your cleanroom airflow project.
